Kutuda Ne Var?

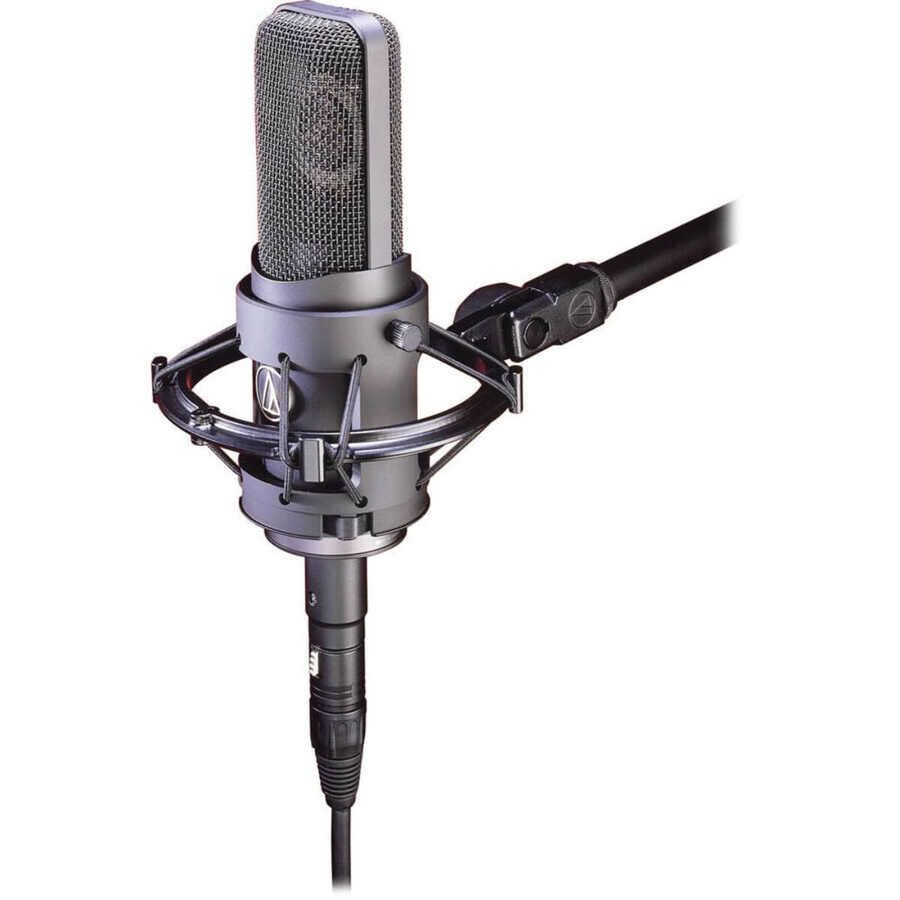

Audio-Technica AT4060a Kardioid Kondenser Mikrofon
AT8560a Tüp Mikrofon Güç Ünitesi
AT8447 5/8"-27 Dişli Standlar için Şok Montajı
Tüp Mikrofon Güç Ünitesi için Rafa Montaj Adaptörleri
Koruyucu Mikrofon Taşıma Çantası
ELEMENT Externally polarized (DC bias) condenser
POLAR PATTERN Cardioid
FREQUENCY RESPONSE 20-20,000 Hz
OPEN CIRCUIT SENSITIVITY -34 dB (19.9 mV) re 1V at 1 Pa
IMPEDANCE 200 ohms
MAXIMUM INPUT SOUND LEVEL 150 dB SPL, 1 kHz at 1% T.H.D.;
149 dB SPL, 1 kHz at 0.5% T.H.D.
NOISE 19 dB SPL
DYNAMIC RANGE (typical) 131 dB, 1 kHz at Max SPL
SIGNAL-TO-NOISE RATIO 75 dB, 1 kHz at 1 Pa
POWER REQUIREMENTS AT8560a tube microphone powering unit
(100-240V AC) (120V AC for USA/Canada)
WEIGHT (MICROPHONE) 645 g (22.8 oz)
WEIGHT (POWER SUPPLY) Tube microphone powering unit: 1.3 kg (2.87 lbs)
DIMENSIONS Microphone: 215.0 mm (8.46") long, 53.4 mm (2.10") maximum body diameter
Tube microphone powering unit: 212.0 mm (8.35") W x 131.5 mm 5.18") D x 46.0 mm (1.81") H
OUTPUT CONNECTOR 3-pin XLRM-type (on tube microphone powering unit)
CABLES 7.6 m (24.9') cable with 6-pin XLR-type connectors for use between microphone and tube microphone powering unit; AC power cable
ACCESSORIES FURNISHED AT8560a tube microphone powering unit; AT8447 shock mount for 5/8"-27 threaded stands; rack-mount adapters for tube microphone powering unit; protective mic carrying case
