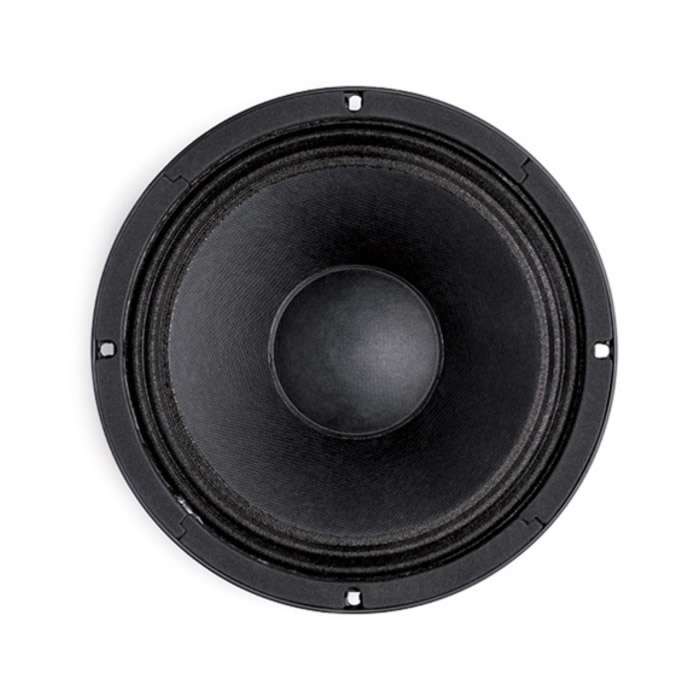

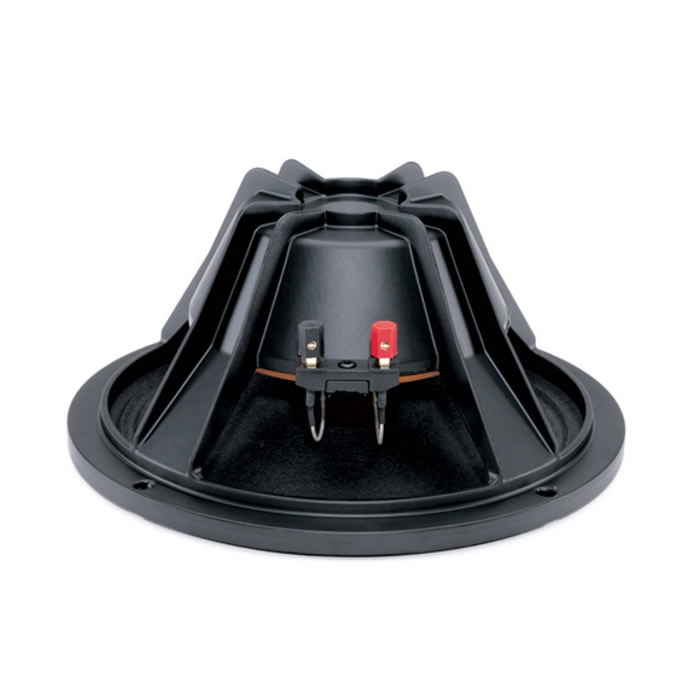

10HPL64 Çıplak Mid Bas Hoparlör
400 W continuous program power capacity
64 mm (2.5 in) aluminium voice coil
60 - 4000 Hz response
98.5 dB sensitivity
Neodymium magnet allows a very light yet powerful motor assembly
Teknik Özellikler:
- Nominal diameter 250 mm (10.0 in)
- Nominal impedance 8 Ω
- Minimum impedance 6.2 Ω
- Nominal power handling * 200 W
- Continuous power handling * 400 W
- Sensitivity (1W/1m) * 99.0 dB
- Frequency range 60 - 4000 Hz
- Voice coil diameter 64 mm (2.5 in)
- Winding material Aluminium
- Former material Glass Fibre
- Winding depth 12 mm (0.47 in)
- Magnetic gap depth 8 mm (0.31 in)
- Flux density 1.25 T
- Design
- Surround shape Double Roll
- Cone shape Exponential
- Magnet material Neodymium Inside Slug
- Spider Single
- Pole design Straight Pole
- Woofer cone treatment None
- Recommended enclosure 26.0 dm3 (0.92 ft3)
- Recommended tuning 67 Hz
- Parameters *
- Fs 61 Hz
- Re 5.4 Ω
- Qes 0.33
- Qms 4.5
- Qts 0.31
- Vas 32.0 dm3 (1.1 ft3)
- Sd 320.0 cm2 (50.0 in2)
- η₀ 2.5 %
- Xmax 4.0 mm
- Xvar 5.5 mm
- Mms 29 g
- Bl 15.0 Txm
- Le 0.5 mH
- EBP 184 Hz
- Mounting And Shipping Info
- Overall diameter 261 mm (10.3 in)
- Bolt circle diameter 245 mm (9.6 in)
- Baffle cutout diameter 230.0 mm (8.8 in)
- Depth 122 mm (4.8 in)
- Flange and gasket thickness 13 mm (0.5 in)
- Air volume occupied by driver 1.5 dm3 (0.05 ft3)
- Net weight 2.0 kg (4.4 lb)
- Shipping weight 2.6 kg (5.7 lb)
- Shipping box 270x270x150 mm (11.2x11.2x5.9 in)
