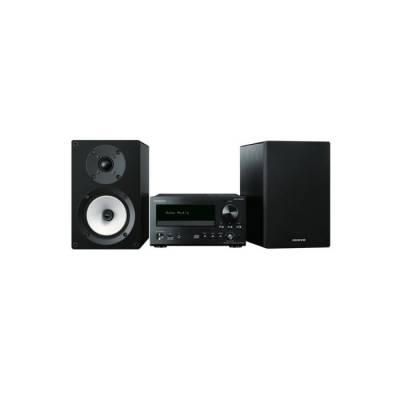

Stream tracks from online music services, relax to an internet radio program, or air your digital music collection with the clarity and assurance of a high-end audio component. With wireless-capable ethernet and optional Bluetooth USB adapter, you can source music from a preloaded selection of online channels—including Spotify, vTuner, and Last.fm—or stream from your smart phone, PC, tablet, or iPhone. Then there’s the quality front-loading CD player, FM/AM tuner with 40-station preset memory, USB port for iPod/iPhone, and digital inputs linked to the 192 kHz/24-bit DAC for playback of lossless formats stored on computer. Of course, being an Onkyo product, you’re assured of outstanding sound quality, with a deep and natural bass resonance. Three-Stage Inverted Darlington amplifier technology is sourced directly from the company’s high-end audio components, while the symmetrical channel layout and short signal pathways reduce unwanted noise and help to produce a well-separated stereo sound. Solid two-way bookshelf speakers feature N-OMF cones, and, like the receiver, come in a choice of finishes. Controlled via remote app for selected smart phones, the CS-N755 integrates your digital life and elevates music to spectacular new heights.
CD RECEIVER SECTION
Amplifier Section
Power Output: 22 W + 22 W (4 Ω, 1 kHz, 0.4 %, 2 Channels Driven, IEC)
THD+N (Total Harmonic Distortion + Noise): 0.4% (1 kHz, 1 W)
Damping Factor: 22 (1 kHz, 8Ω)
Input Sensitivity and Impedance: 150 mV/47 kΩ (Line)
Rated RCA Output Level and Impedance: 0.15 V/330 Ω (Line Out)
Frequency Response: 10 Hz–100 kHz/+3 dB, -3 dB
Tone Control:
±6 dB, 80 Hz (Bass)
±8 dB, 10 kHz (Treble)
+8 dB, 30 Hz (PM Bass)
Signal-to-Noise Ratio: 100 dB (Line, IHF-A)
Speaker Impedance: 4 Ω – 16Ω
Tuner Section
Tuning Frequency Range
FM: 87.5 MHz–108 MHz
AM: 522 kHz–1,611 kHz
General
Power Supply: AC 220 – 230 V~, 50/60 Hz
Power Consumption: 74 W
Standby Power Consumption: 0.26 W
Fiziksel Özellikler
Genişlik: 215 mm
Yükseklik: 119 mm
Derinlik: 331 mm
Ağırlık: 4.8 kg
Carton (CR-N755)
Genişlik: 309 mm
Yükseklik: 232 mm
Derinlik: 487 mm
Ağırlık: 7 kg
SPEAKER SECTION
Speaker Type: 2-Way, Bass-Reflex
Drivers
Woofer: 12 cm N-OMF Diaphragm
Tweeter: 2.5 cm Soft-Dome
Frequency Response: 55 Hz–35 kHz
Crossover Frequency: 2.5 kHz
Output Sound Pressure Level: 83 dB/W/m
Max. Input Power: 70 W
Nominal Impedance: 4Ω
General
Genişlik: 154 mm
Yükseklik: 245 mm
Derinlik: 258 mm
Ağırlık: 3.6 kg
Carton (D-055)
Genişlik: 487 mm
Yükseklik: 355 mm
Derinlik: 309 mm
Ağırlık: 8.6 kg
Supplied Accessories
• Indoor FM Antenna
• AM Loop Antenna
• Speaker Cable and Cork Spacers
• Instruction Manual
• Remote Controller
• AAA (R03) Batteries x 2
