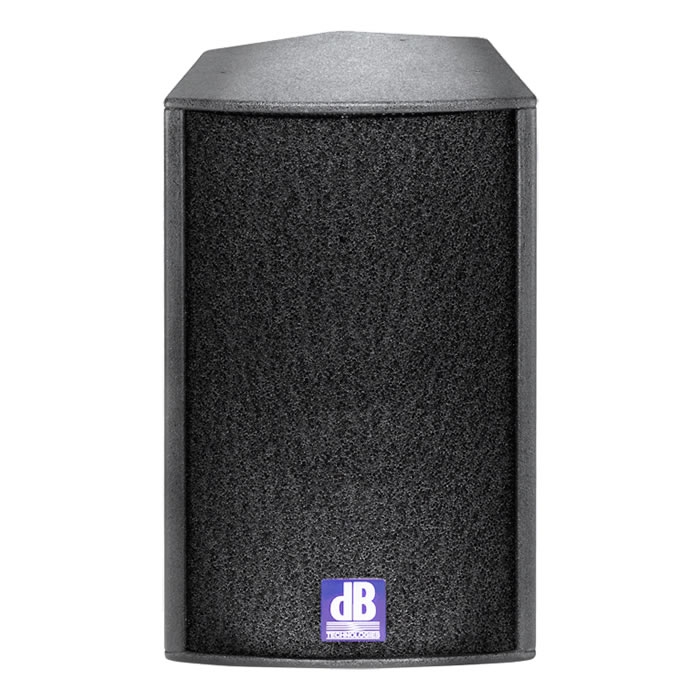

Due to its powerful low frequency reproduction and a compression driver with a 1.4“ voice coil the ARENA 15 is the right choice for full range applications.
It convinces with a high SPL of 129dB and the low weight of only 23.7 kg guarantees easy handling.
Like all ARENA-Series models the ARENA 15 provides 12 professional fly-points with metalbracings.
The enclosurecan be combined with ARENA SW15 and ARENA SW18 subwoofers.
Teknik Özellikler:
- Speaker Type: 2-Way Passive Speaker
- ACOUSTICAL DATA
- Nominal Power Rating: 400 W/RMS
- Program Power Rating: 800 W
- Impedance: 8 Ohms
- Frequency Response [+/- 3dB]: 80 - 19.000 Hz
- Max SPL: 129 dB
- HF: 1 “
- Driver Protection: PTC
- Directivity: 90x40 °
- Horn: CD Horn
- Rotatable Horn: YES
- Crossover Frequency (passive): 2000 Hz
- LF: 15 “
- Voice Coil LF: 2 “
- AMPLIFIER
- PROCESSOR
- INPUT
- Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- MECHANICS
- Housing: Multiplex birch plywood
- Pole mount: 36mm
- Angles Up: Monitor use 45 °
- Rigging Points: 12 x M10
- Width: 458 mm (18.32 in)
- Height: 710 mm (28.4 in)
- Depth: 453 mm (18.12 in)
- Weight: 23.7 kg (52.25 lbs)
