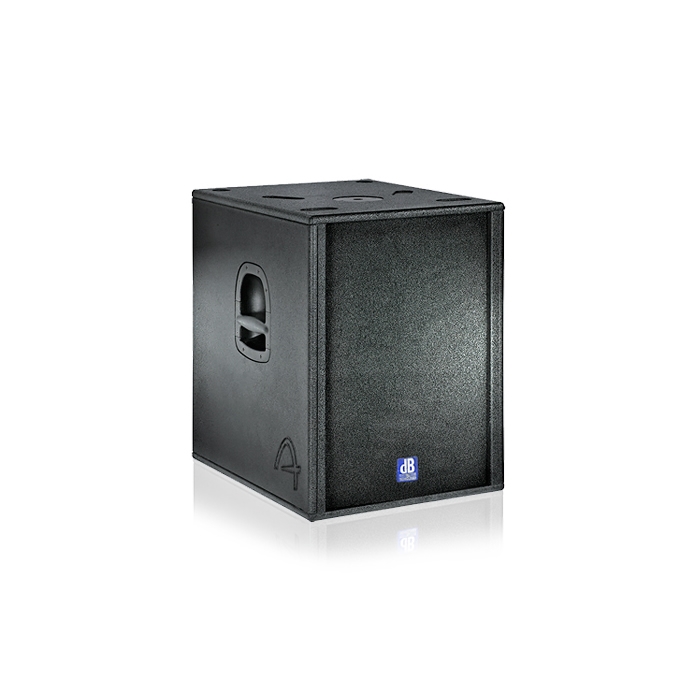

The ARENA SW15 offers a 15" woofer with a 3" voice coil which can take a load up to 1000 watt putting out an extraordinary SPL of 130dB at very powerful low end frequencies.
It can be easily combined with ARENA10 and ARENA12 high/mid units, due to the internal passive crossover.
Also possible is bi-amp operation using an external crossover unit.
Teknik Özellikler:
- Speaker Type: Passive Subwoofer
- ACOUSTICAL DATA
- Nominal Power Rating: 500 W/RMS
- Program Power Rating: 1000 W
- Impedance: 8 Ohms
- Frequency Response [+/- 3dB]: 40 - 150 Hz
- Max SPL: 130 dB
- LF: 15 “
- Voice Coil LF: 3 “
- Internal Crossover: YES
- Crossover Frequency (passive): 150 Hz
- AMPLIFIER
- PROCESSOR
- INPUT
- Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)
- MECHANICS
- Housing: Multiplex birch plywood
- Width: 460 mm (18.4 in)
- Height: 600 mm (24 in)
- Depth: 600 mm (24 in)
- Weight: 34 kg (74.96 lbs)
