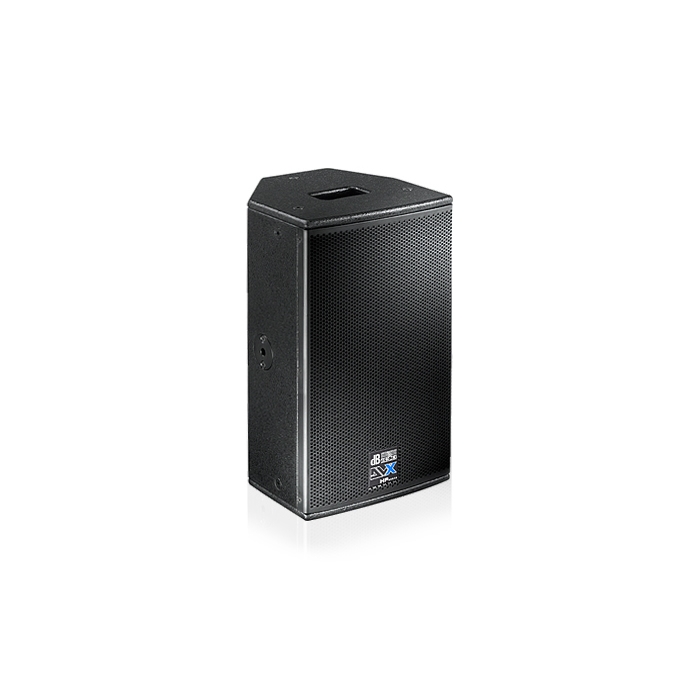

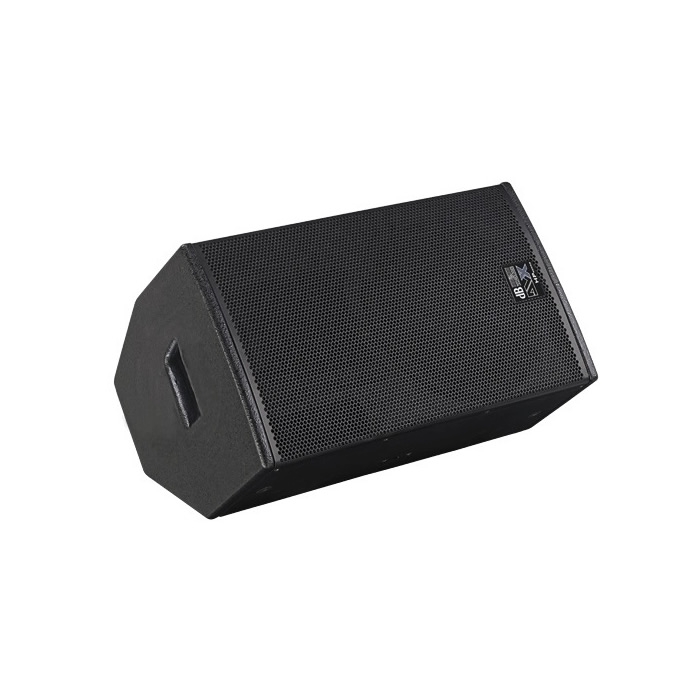

The DVX D8 HP is a powerful active 8"/1" 2-way speaker cabinet designed to render speech and background and other music.
Loaded with a high-quality 8" woofer and a 1" compression driver with a rotatable CD horn, it is a very articulate with great speech intelligibility and excellent audio properties.
Equipped with an integrated digiproG2 digital power amp, this powered enclosure offers the compact dimensions and light weight that to date have been the domain of high-end passive loudspeakers.
Teknik Özellikler:
TECHNICAL DATA
Speaker Type: 2-Way Active Speaker
ACOUSTICAL DATA
Frequency Response [-10dB]: 75 - 20.000 Hz
Frequency Response [+/- 3dB]: 100 - 19.000 Hz
Max SPL: 125 dB
HF: 1 "
Voice Coil HF: Titanium 1.7 "
Directivity: 90x70 °
Horn: CD Horn Aluminium
Rotatable Horn: YES
LF: 8 "
Voice Coil LF: 2 "
AMPLIFIER
Amp Technology: Digipro® G2
Amp Class: Class D
Power RMS: 400 W
Peak Power: 800 W
Cooling: Convection
PROCESSOR
Controller: DSP 24 Bit/48 kHz
System Presets: Flat, Monitor
Limiter: RMS, Peak. Thermal, Multiband
Crossover Frequency MF-HF: 1800 Hz
Slope MF-HF: 24 dB/Octave
INPUT
MECHANICS
Housing: Multiplex birch plywood
Housing Design: Multifunctional
Angles Up: Monitor use 45 °
Rigging Points: 6x M8 2x 10mm Quick Release for DTF-bracket
Width: 250 mm (10 in)
Height: 425 mm (17 in)
Depth: 260 mm (10.4 in)
Weight: 9.7 kg (21.38 lbs)
