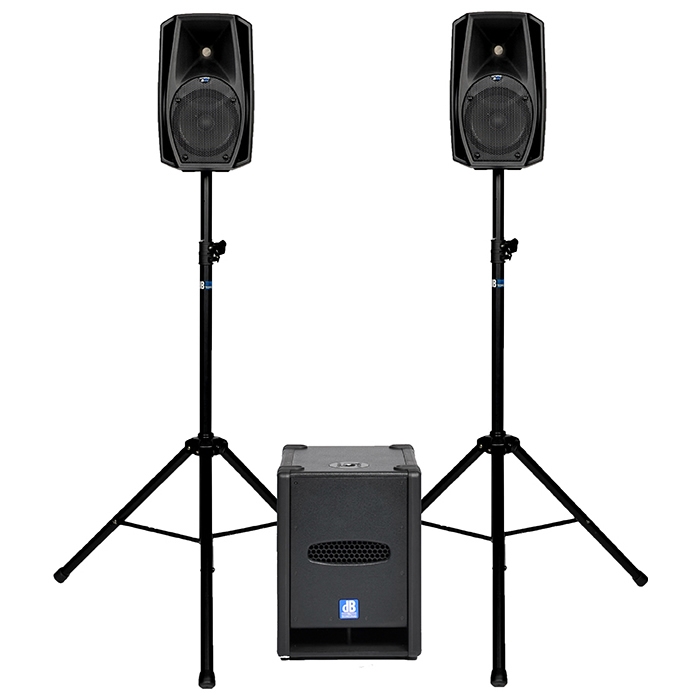

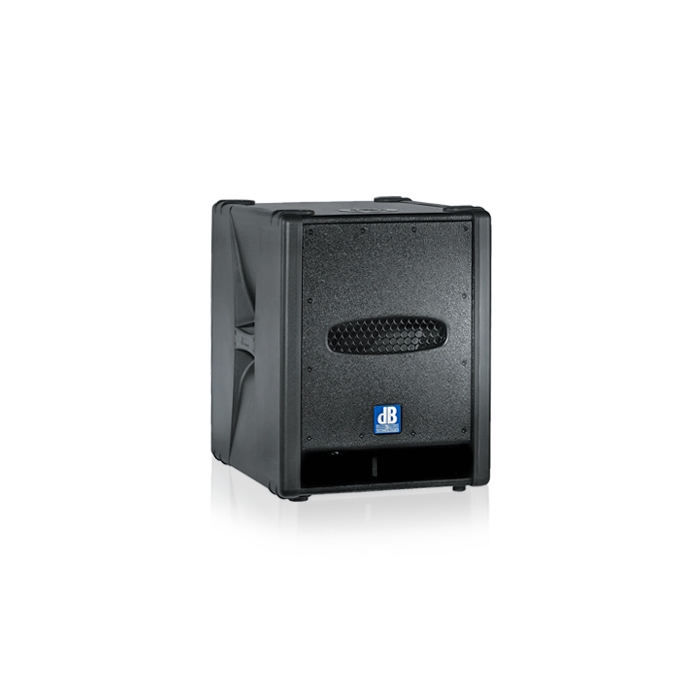

Equipped with a 800W digital power amp, the SUB 12 D is the perfect complement to 8“ or 10“ speaker systems for users looking to set up small but assertive satellite systems that deliver exceptional performance.
Featuring compact dimensions and the innovative H.E.T housing, this unit is easy to transport and set up.
Connecting satellites is an exercise in convenience thanks to an integrated digital crossover
(DSP) with adjustable frequency.
Teknik Özellikler:
TECHNICAL DATA
- Speaker Type: Active Bandpass Subwoofer
ACOUSTICAL DATA
- Frequency Response [-10dB]: 40 - 150 Hz
- Max SPL: 127 dB
- Directivity: omnidirectional
- LF: 12 "
AMPLIFIER
- Amp Technology: Digipack™
- Amp Class: Class D
- Peak Power: 800 W
PROCESSOR
- Controller: DSP 24 bit/ 48 kHz
- Phase: 0, 180 °
- Limiter: Dual Active Limiter
- Crossover Frequency: 100 Hz, 24dB/Octave
- System Presets: Flat, Boost

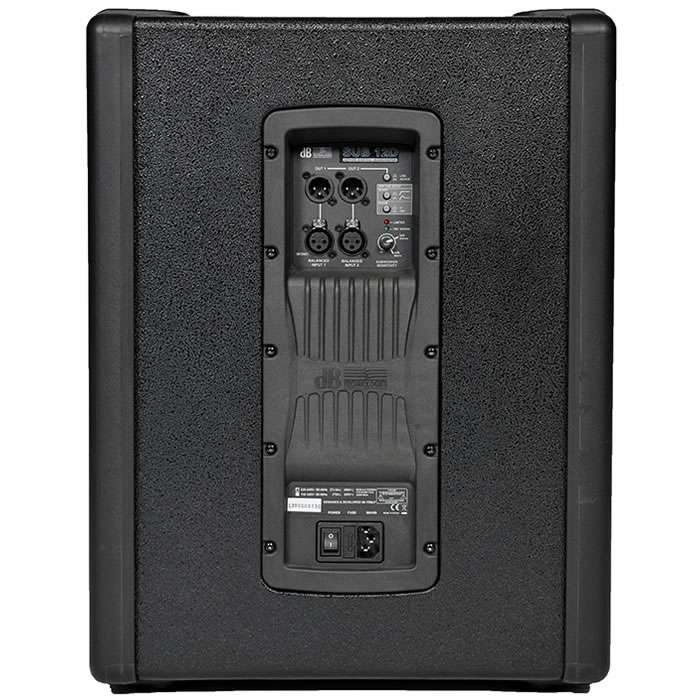

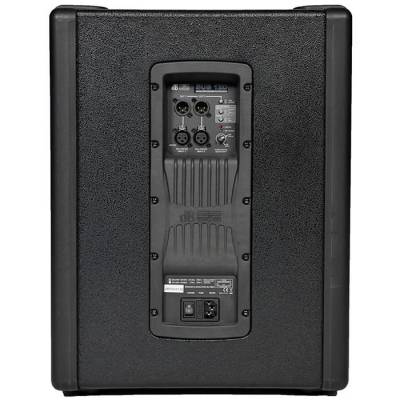

INPUT
- Signal Input: 2x XLR
- Signal Output: 2x XLR X-Over Out/ Link Out
MECHANICS
- Housing: Multiplex with H.E.T coating, reinforced
- Width: 390 mm (15.6 in)
- Height: 520 mm (20.4 in)
- Depth: 505 mm (19.9 in)
- Weight: 24 kg (52.91 lbs)
