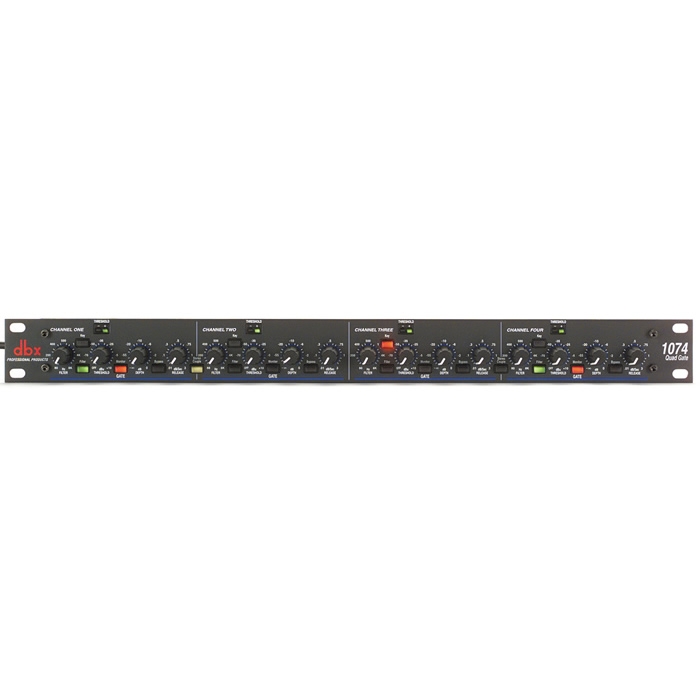

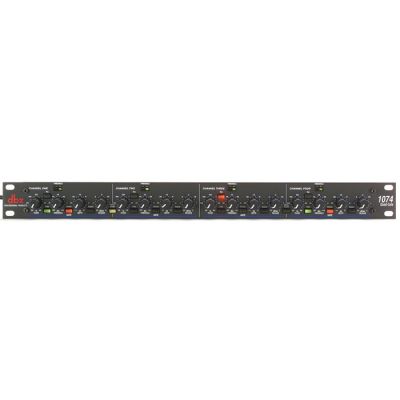

1074 Quad Gate Sinyal İşleyici
Teknik Özellikler:

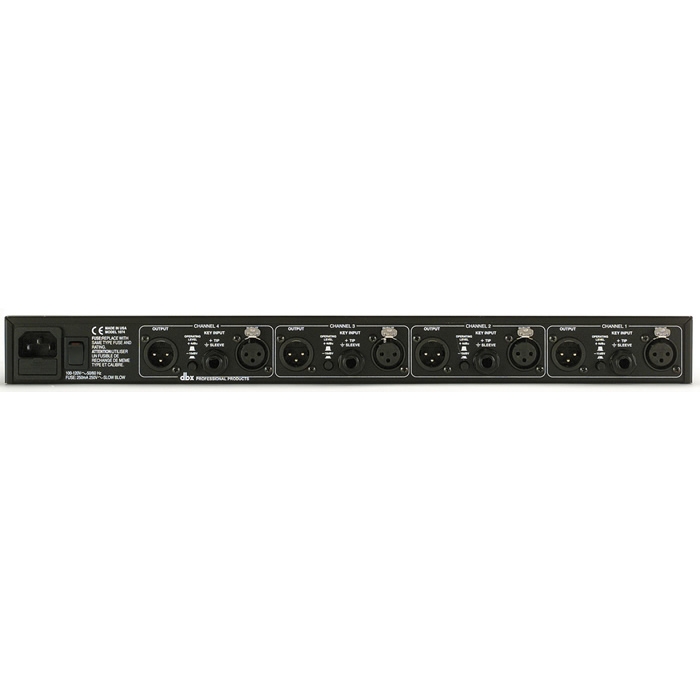

- Input Connectors XLR (Pin 2 and tip hot)
- Input Type Electronically balanced/unbalanced, RF filtered
- Input Impedance Balanced > 50 kOhm, unbalanced >25 kOhm
- Max Input > +22 dBu balanced or unbalanced
- CMRR 40dB: Typically >55 dB at 1 kHz
- Key Input Electronically balanced/unbalanced, RF fitered Balanced 50kOhm, unbalanced > 25 kOhm
- Output Connectors XLR (Pin 2 hot)
- Output Type Servo-balanced/unbalanced, RF filtered
- Output Impedance Balanced 60 Ohm, unbalanced 30 Ohm
- Max Output > +22 dBm balanced, > +20 dBm unbalanced
- Bandwidth 20 Hz to 20 kHz, +0/-0.5 dB
- Frequency Response 0.35 Hz to 200 kHz, +0/-3 dB
- Noise < -96 dBu, unweighted, 22 kHz measurement bandwidth
- Dynamic Range > 115 dB, unweighted
- THD+Noise 0.008% typical at +4 dBu (1 kHz unity gain), 0.08% typical at +20 dBu (1 kHz unity gain), < 0.1% any amount of compression up to 40 dB, 1 kHz
- Interchannel Crosstalk < -80dB, 20 Hz to 20 kHz
- Stereo Coupling True RMS Power Summing
- Operating Voltage 100-120 VAC 50-60 Hz or 200-240 VAC 50/60 Hz
- Power Consumption 30 Watts
- Fuse 100-120 VAC:250 mA Slow Blow, 200-240 VAC:125 mA Type T
- Power Connector IEC receptacle
- Unit Weight 6.9 lbs.
- Shipping Weight 9.3 lbs.
