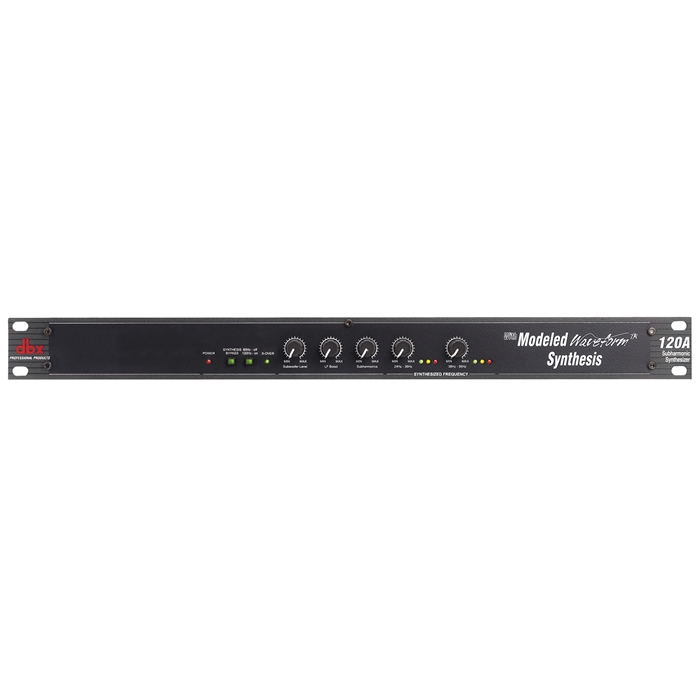

120A Subharmonic Synthesizer
Teknik Özellikler:
- Connector 1/4" TRS jacks (inputs and outputs) RCA inputs
- Input Impedance >= 40k ohm Bal or 20k ohm unbal. (1/4") 20k ohm (RCA)
- Max Input +22dBu (1/4") +8.5dBV (RCA)
- Output Impedance 100 ohm, Impedance balanced
- Max Output +22 dBu into 600 ohm
- Frequency Response 20Hz-20kHz ±0.5dB, (no synthesis, full-range mode) 15Hz-90kHz +0, -3dB
- THD 0.05% (no synthesis, either output)
- Noise -88dBu, controls@max., 22Hz > 22kHz unweighted (full range output)
- Dynamic Range 112dB
- Synthesis Frequency Range 26-56Hz (from 54-110Hz input signal)
- Crossover 12dB/octave high pass (-3dB @ 80 Hz or 120Hz); 6dB/octave derived low pass. Phase-coherent (unity-sum)
- Indicators Power, Crossover, Bypass
- Metering Synthesis activity (3 LEDs per band)
- Controls 26-36Hz and 36-56Hz Band Synthesis Level, Subharmonics, Low Frequency Boost, Subwoofer Output Crossover Frequency, Select, Crossover in/out
- Power Supply 1.75"x19"x6.2" (4.5cm x 48.3cm x 15.75cm)
- Rack Space 1 Rack Unit
- Unit Weight 4.75 lbs/2.2kg
- Shipping Weight 8 lbs./3.7kg
