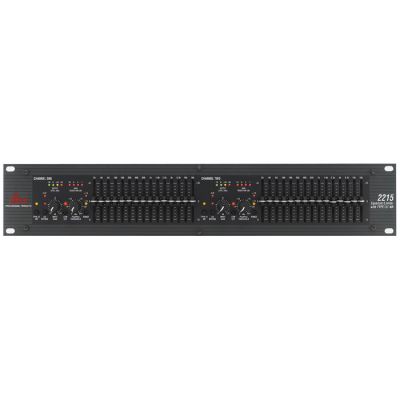

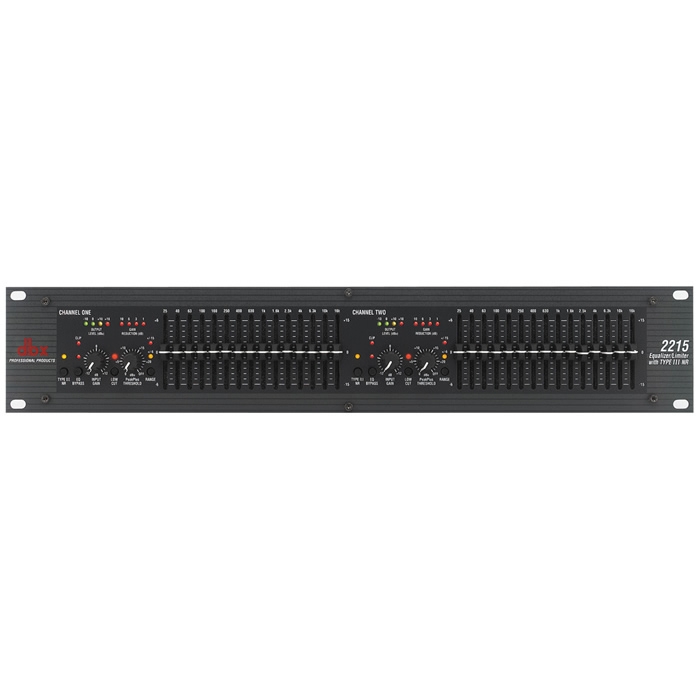

2215 Çift Kanal 15 Band Equalizer Limiter
Teknik Özellikler:
- Input Connectors 1/4" TRS, female XLR (pin 2 hot), and barrier terminal strip
- Input Type Electronically balanced/unbalanced, RF filtered
- Input Impedance Balanced 40 kOhm, unbalanced 20 kOhm
- Max Input >+21dBu balanced or unbalanced
- CMRR >40dB, typically >55dB at 1kHz

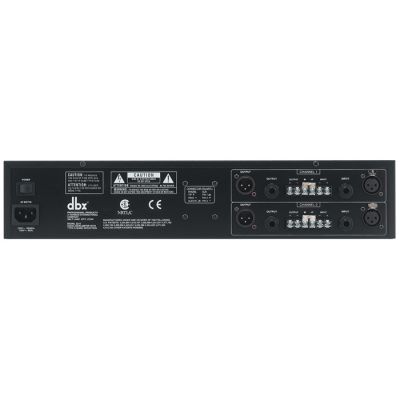

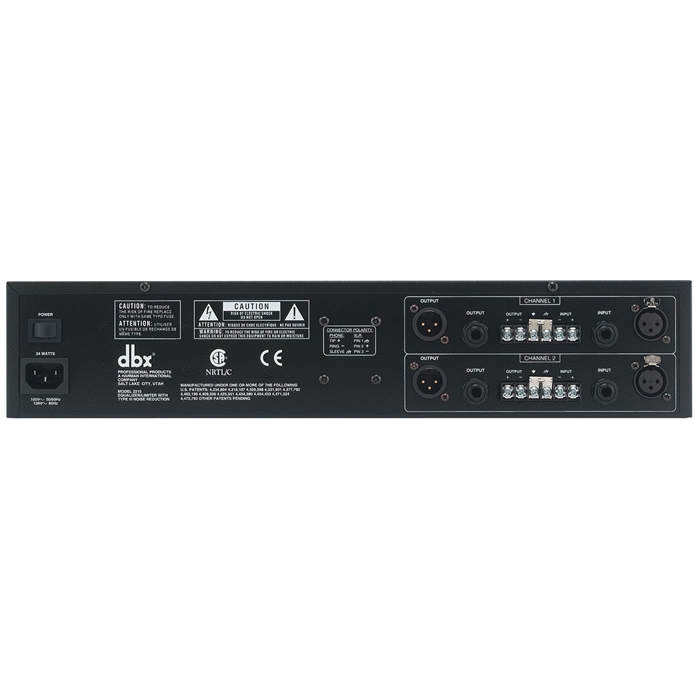

- Output Connectors 1/4" TRS, male XLR (pin 2 hot), and barrier terminal strip
- Output Type Impedance-balanced/unbalanced, RF filtered
- Output Impedance Balanced 200 ohm, unbalanced 100 ohm
- Max Output >+21dBu balanced/unbalanced into 2 kOhm or greater; >+18dBm balanced/unbalanced (into 600 ohm)
- Bandwidth 20Hz to 20kHz, +/-0.5dB
- Frequency Response <10Hz to >50kHz, +0.5/-3dB
- Signal-to-Noise (NR In: +/-6 and +/-15dB ranges) >102dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
- Dynamic Range (NR In: +/-6dB and +/-15dB ranges) >120dB, unweighted
- Signal-to-Noise (NR Out: +/-6dB range) >94dB, unweighted, ref: +4dBu, 22kHz measurment bandwidth
- Dynamic Range (NR Out: +/-6dB range) >112dB, unweighted
- Signal-to-Noise (NR Out: +/-15dB range) >90dB, unweighted, ref: +4dBu, 22kHz measurement bandwidth
- Dynamic Range (NR Out: +/-15dB range) >108dB, unweighted
- THD+Noise <0.04%, 0.02% typical at +4dBu, 1kHz
- Interchannel Crosstalk <-80dB, 20Hz to 20kHz
- Noise Reduction Up to 20dB of dynamic broadband noise reduction
- NR Switch Activates dbx Type III Noise Reduction
- Bypass Switch Bypasses the graphic equalizer section in the signal path
- Low cut Switch (recessed) Activates the 40Hz 18dB/octave Bessel high-pass filter
- Range Switch (recessed) Selects either +/- 6dB or +/- 15dB slider boost/cut range
- I/O Meter 4-LED bar graph (Green, Green, Yellow, Red) at -10, 0, +10, and +18dBu
- Gain Reduction Meter 4-LED bar graph (all Red) at 0, 3, 6, and 10dB
- Indicators NR Active (Yellow); EQ Bypass (Red); Clip (Red); Low Cut (Red); +/-6dB (Yellow); +/-15dB (Red)
- Operating Voltage 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
- Power Consumption 28W
- Power Connector IEC receptacle
- Dimensions 3.5" H X 19" W X 7.9" D (8.9cm x 48.3cm x 20.1cm)
- Unit Weight 8.5 lbs. (3.9 kg)
- Shipping Weight 9.5 lbs. (4.3 kg)
