System Power Rating: 625 Watts (525 + 100)
Frequency Range (-10 dB): 39 Hz -20 kHz
Dimensions (H x W x D): 673 mm x 406 mm x 368 mm (26.5” x 16” x 14.5”)

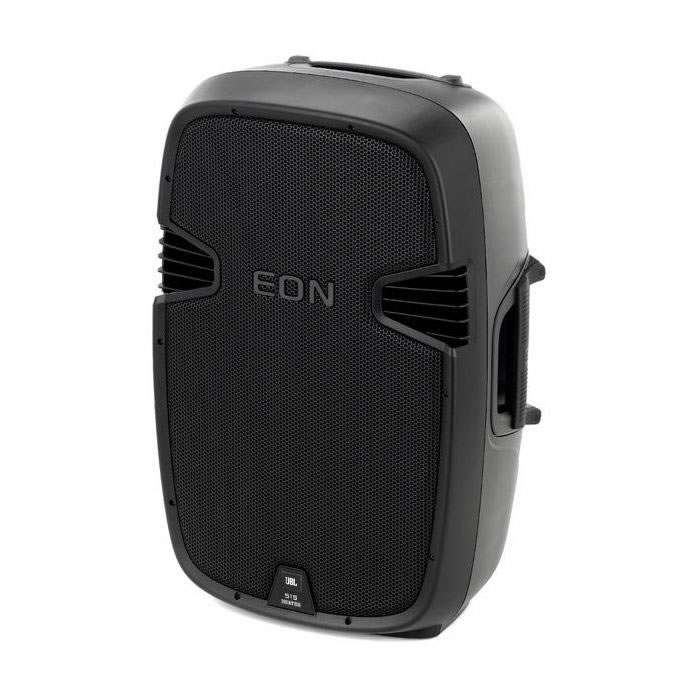

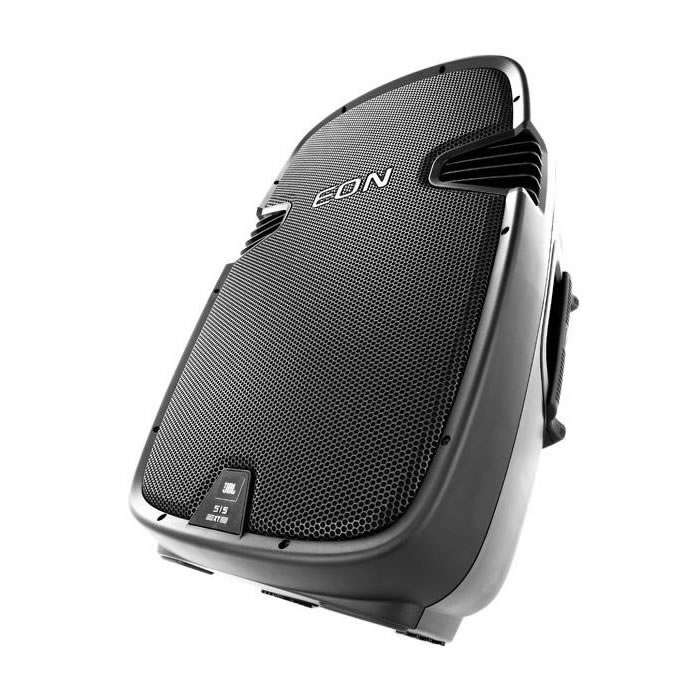

System Type: Self powered 15”, two-way, bass-reflex
Maximum SPL Output: 132 dB
Frequency Response (±3 dB): 42 Hz - 18 kHz

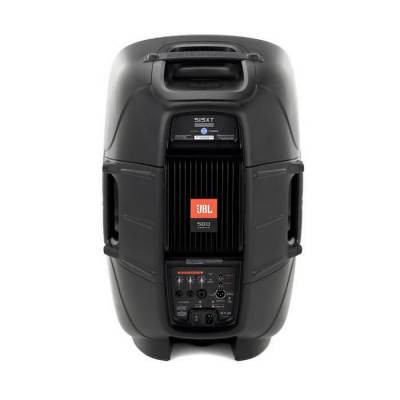

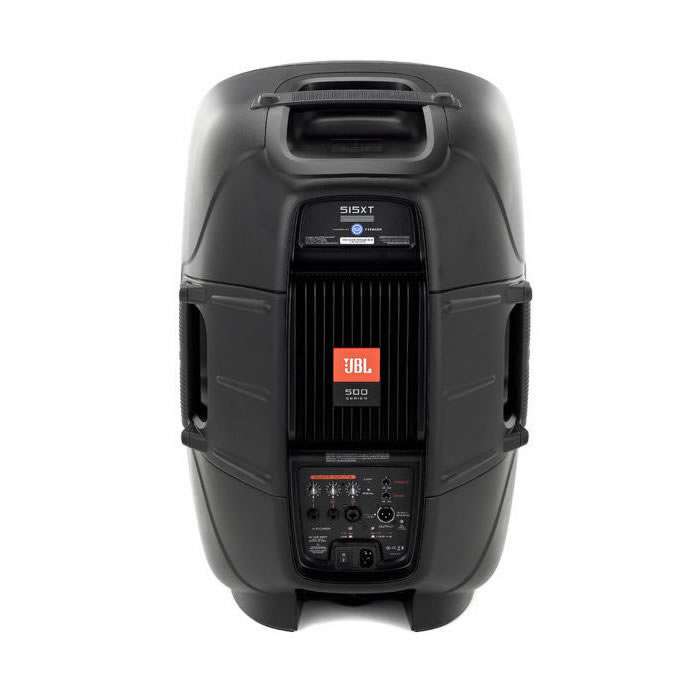

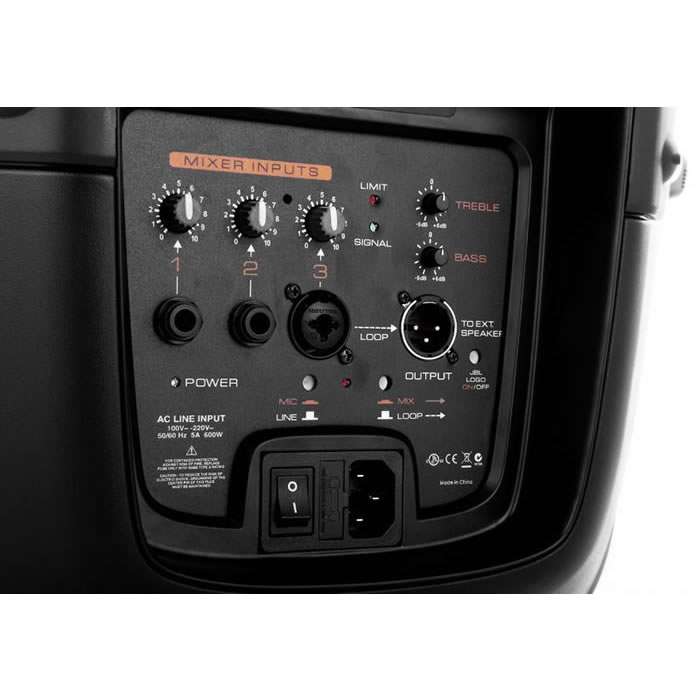

Input Connectors: 2 x 1/4” TRS phone jacks balanced/unbalanced 1 x XLR / 1/4” TRS combo jack with XLR loop through
Input Impedance: 14k ohms
Signal Indicators Limit: Red LED indicates limiter active condition
Signal: Green LED indicates signal present
Mic: Indicates the MIC/LINE switch is in the “MIC” position
EQ: Individual Bass and Treble controls, center detent, 6 dB cut and boost
Bass +/- 6 dB (200 Hz turnover frequency)
Treble +/- 6 dB (4 kHz turnover frequency)
Mic Input Gain -Infinity to +40 dBu
Line Input Gain -Infinity to +4 dBu (+18 dBu maximum input level)
Limiter Yes

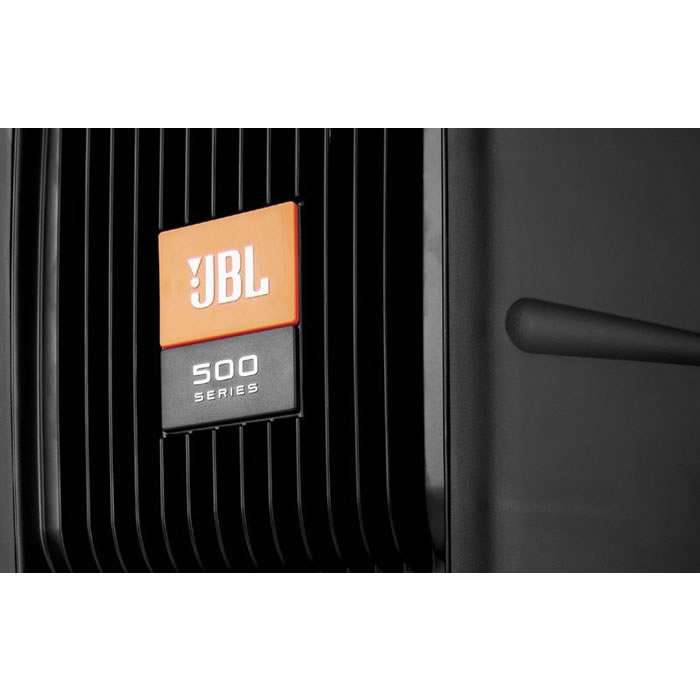

Amplifier Design Crown® Class-D
LF Driver 1 x JBL 265F-1 380 mm (15”) Differential Drive® integrated woofer with dual 2” voice coils
HF Driver 1 x JBL 2414H 25.4 mm (1”) annular polymer diaphragm, neodymium compression driver
Coverage Pattern 100º H x 60º V nominal
Crossover Frequency 1.7 kHz
Material Polypropylene, multi-purpose main & monitor
Suspension / Mounting 36 mm pole socket with stabilizing screw, 5 x M10 suspension points

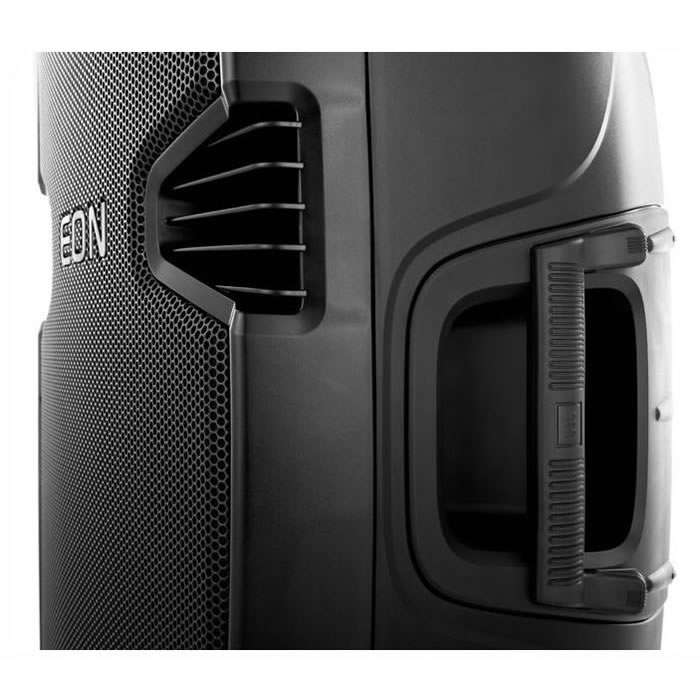

Handles One left/right side, one on top, with rubber grip
Finish Black Granite

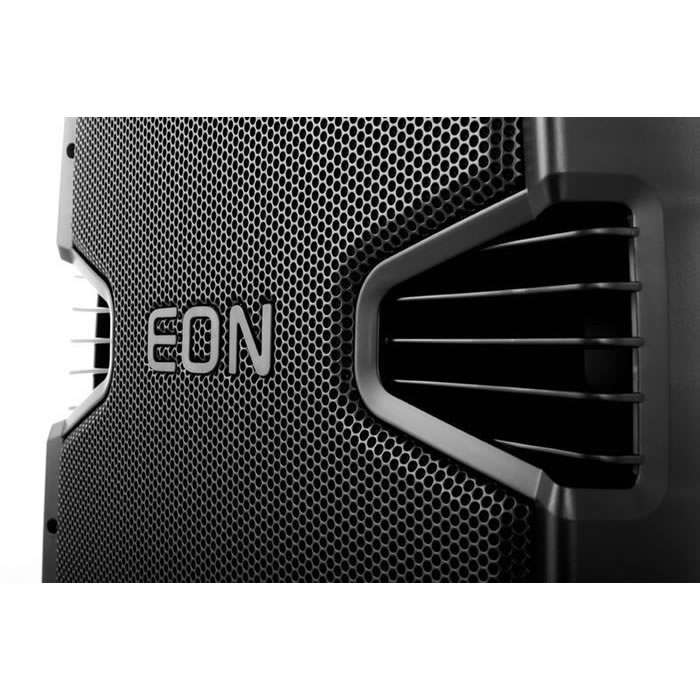

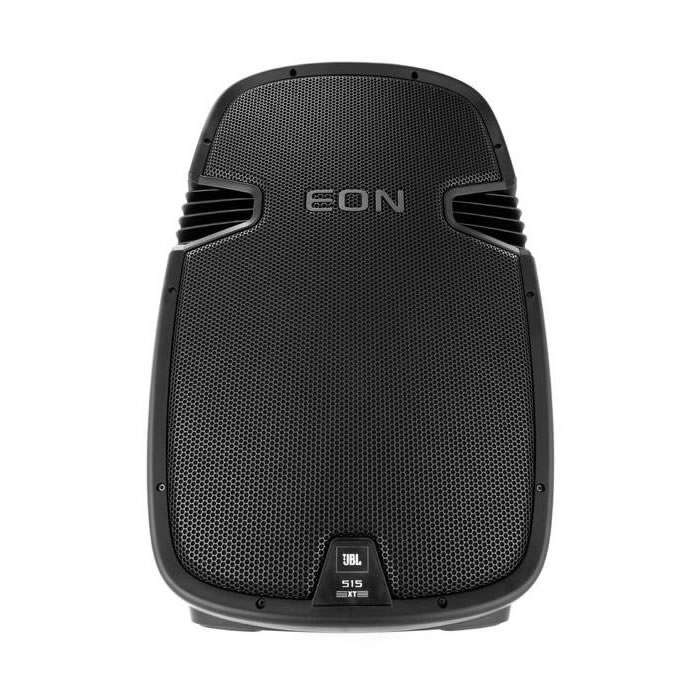

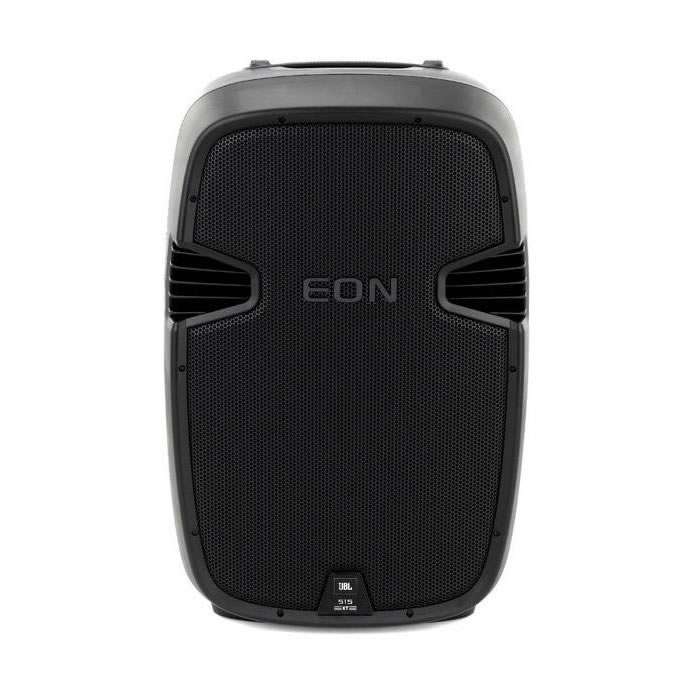

Grille Powder coated perforated steel with acoustically transparent cloth backing
Net Weight 14.8 kg (32.5 lb)
