General
Product type
PA loudspeaker
Type
Powered
Bluetooth Audio Decoder
Bluetooth 4.0
Low/mid Woofer dimensions
15 "
Woofer dimensions (mm)
381 mm
Woofer magnet
Ferrite
Woofer brand
Custom-made

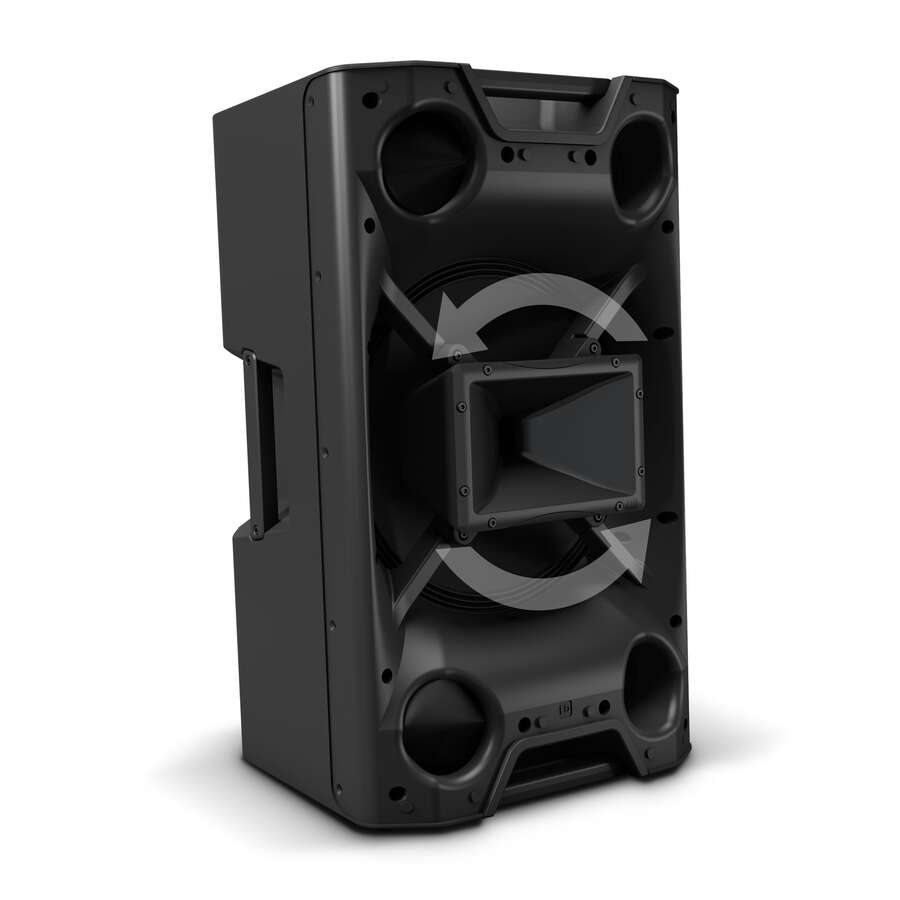

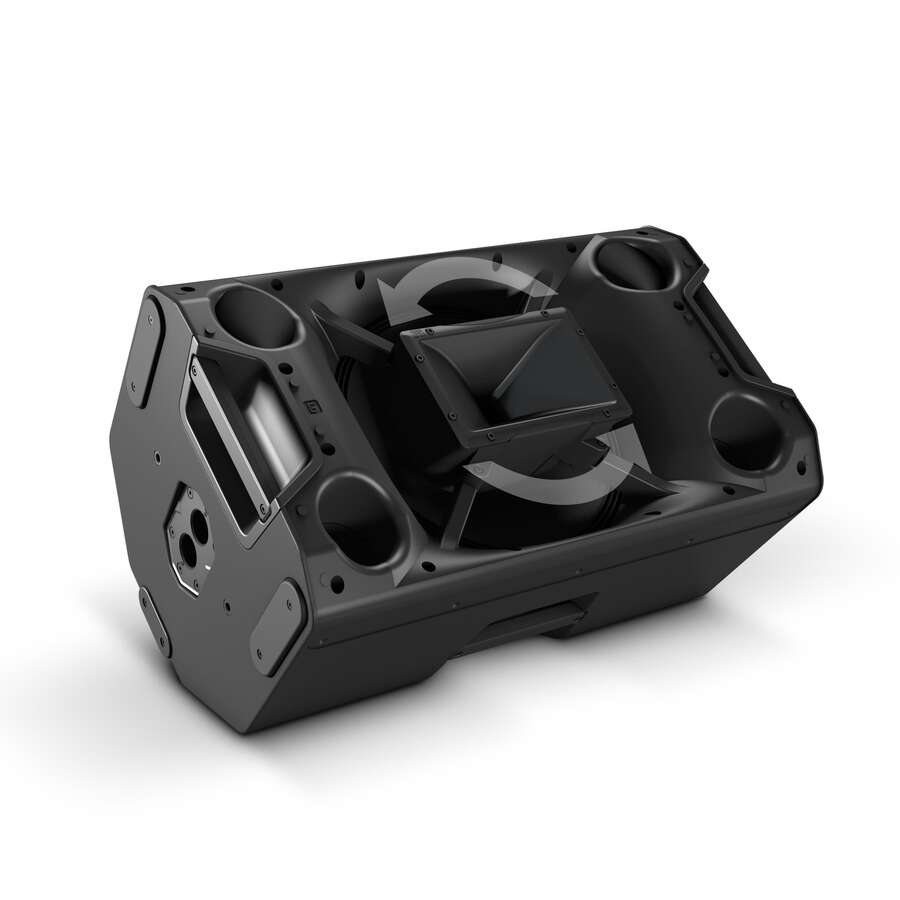

Horn
BEM optimized CD Horn
HF driver dimensions
1 "
HF driver dimention (mm)
25.4 mm
HF driver magnet
Ferrite
HF driver brand
Custom-made
HF driver voice coil
1.4 "
HF driver voice coil (mm)
35 mm
Amplifier
Class D
Dispersion (H x V)
90° x 50°
System Power (RMS)
300 W
Peak power
1200 W
Frequency response
48 Hz - 20000 Hz
Crossover frequency kHz
2 kHz
Max. SPL (Peak)
128 dB
Protection circuits
Multiband limiter, over voltage, over-current, thermal overload

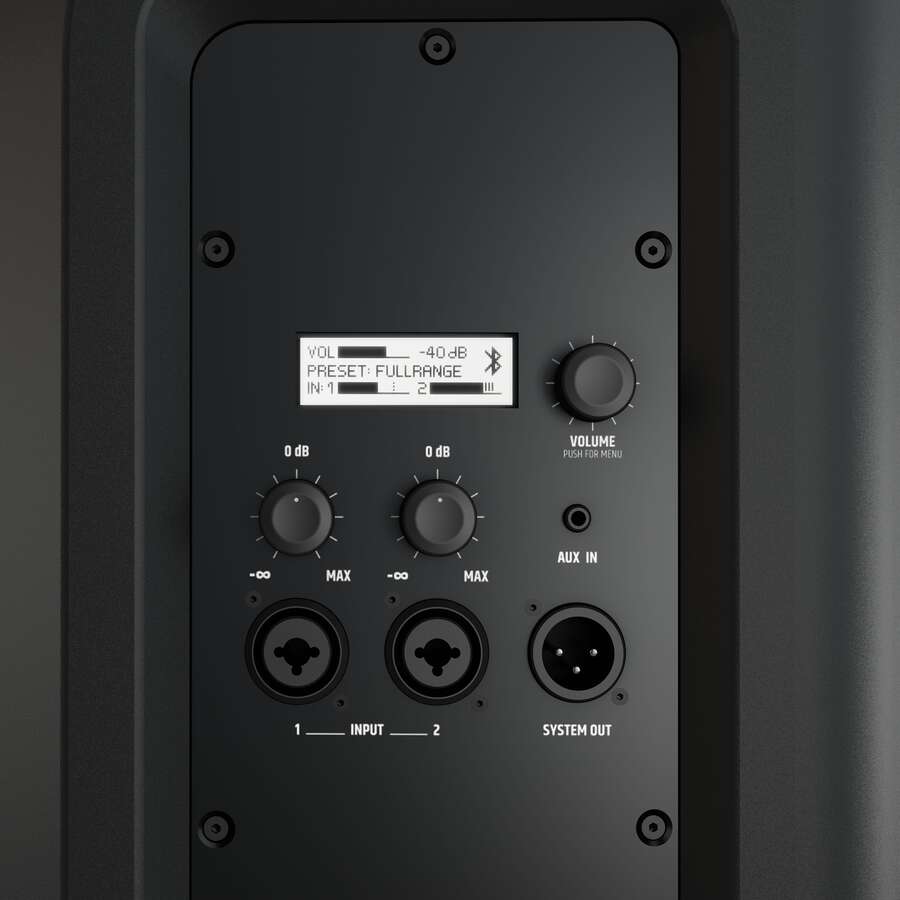

Controls
2 x gain, On / off switch, Rotary/push encoder
Indicators
LC display
Mic/ line inputs
2
Mic-/ Line Input Connectors
6.3 mm jack Combination sockets (symmetrical), XLR
Line inputs
1
Line input connectors
3.5 mm TRS
Line outputs
1
Line output connectors
XLR
Power supply
SMPS
Power consumption
150 W
Ambient temperature (in operation)
0 - 40 °C
Operating voltage
100 V - 240 V AC / 50 - 60 Hz
Relative Humidity
< 80 %, not condensing
Fuse
T4AL 250 V
Cabinet material
Polypropylene
Cabinet construction
Bass Reflex
Mounting
36mm flange (0°, 5°), 6 x M10 flying points

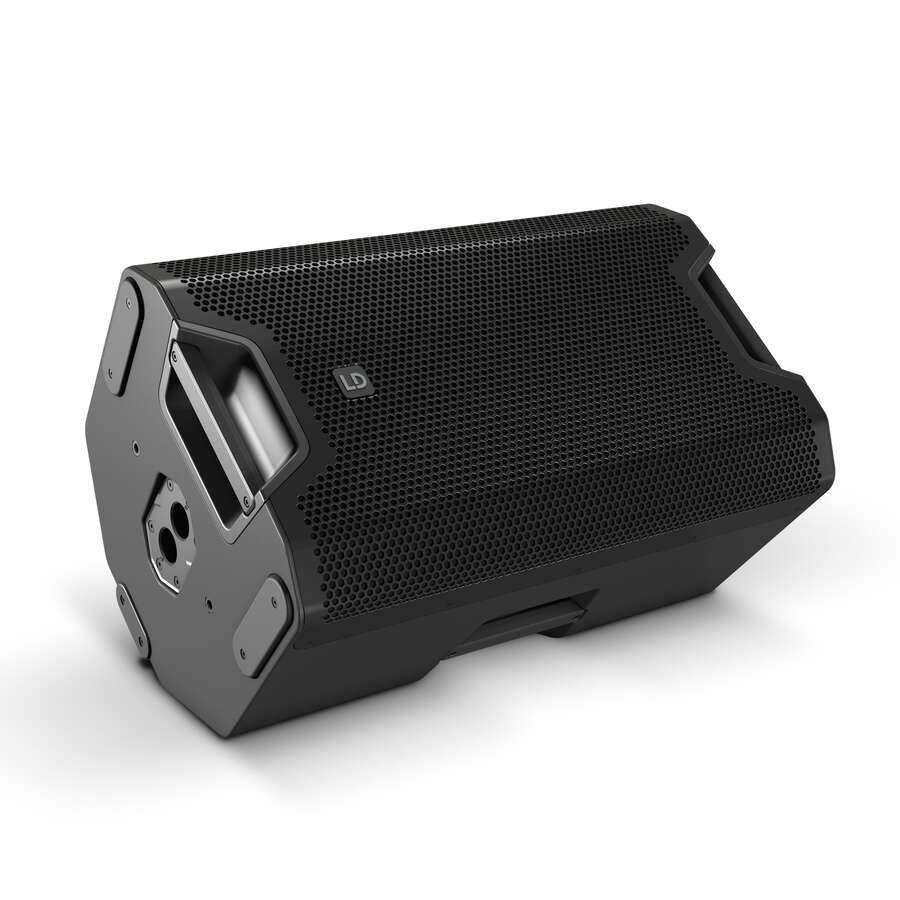

Monitor angle
55 °
Width
416 mm
Height
695 mm
Depth
415 mm
Features
Bluetooth
Weight
24,3 kg
Accessories (included)
Power cord
