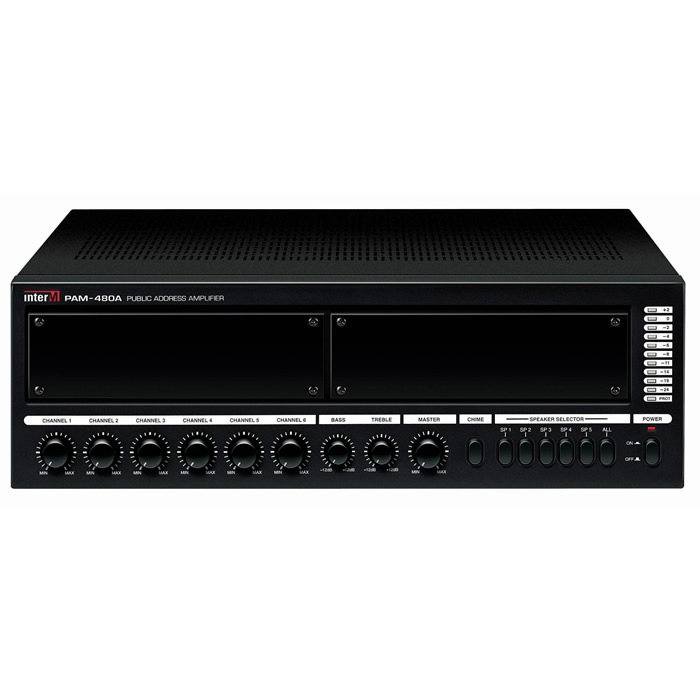

Rated Output Power: PAM-480A(THD 3%) : 480W (RMS)
Frequency Response
Amp In: 80Hz~20kHz
Link In: 80Hz~15kHz
CH1~CH6: 120Hz~8kHz
Remote In: 120Hz~8kHz(PAM-340A, PAM-480A)
T.H.D.(at 1kHz Rated Output): Less than 1%(PAM-120A)
T.H.D.(at 1kHz Half Power Output): Less than 0.5%(PAM-340A, PAM-480A)
Amp In: Better than 88dB(PAM-340A/480A)
Link In: Better than 65dB
CH1~CH6: Better than 50dB
Remote In: Better than 50dB(PAM-340A/480A)
Input Sensitivity/Impedance
CH1~CH6
TRIM VR -60dB Position: 1mV/10kΩ
TRIM VR -16dB Position: 158mV/10kΩ
Link In: 100mV/10kΩ
Amp In: 1V/20kΩ(PAM-340A/480A)
Remote In: 1V/10KΩ(PAM-340A/480A)
Speaker Output/Impedance: PAM-480A : 480W, 100V/20.8Ω
Preamp Output/Impedance: 1V/600Ω
Tone Control (100Hz, 10kHz): ±12dB
CH1~CH6 EQ Control (100Hz, 1kHz, 10kHz): ±12dB
Power Source: 100–120VAC or 220V–240VAC; 50/60Hz, 24V DC(only PAM-120A)
Power Consumption: PAM-480A : 360W(1/8 POWER), 550W(1/3 POWER), 880W(FULL POWER)
Weight: PAM-480A : 15.5kg/34.2lb
Dimensions: 420(W) x 132(H) x 360(D)mm/16.5(W) x 5.2(H) x 14.2(D)in
Operation Temperature: 14F~104F (-10°C~+40°C)
