| Amplifier Type | Class H High Performance Professional linear design |
|---|---|
| Controls | Volume Controls (per channel), Power switch, Input Sensitivity Switch, Bridge/Routing Mode Switch |
| Cooling | Forced air, variable speed fan, air flow front to back |
| Damping Factor | >200 |
| Dimensions | 88 x 482 x 297mm, 3.5 x 19 x 11.7" |
| Features | Soft start, comprehensive protection |
| Input Impedance (Bal/Unbal) | 20KΩ/10KΩ |
| Input Sensitivity | 0.775V/1.4V |
| Inputs | 2x Balanced XLRs |
| Output Power : 4 Ohm Stereo | 2x2600W |
| Output Power : 8 Ohm Stereo | 2x1500W |
| Output Power : 8 Ohm Bridge | 5150W |

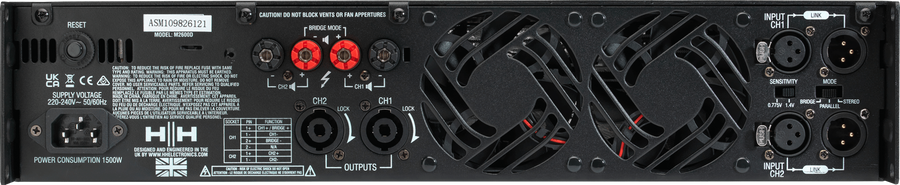

| Outputs | 2x locking SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x Balanced XLR link outs |
|---|---|
| Packed Weight | 26.6Kg/pc, 58.6 lbs/pc |
| Power Connector | Removeable IEC Power Cord C14 |
| Protection | Soft start, VHF, RF, short circuit, over load, clip limit, over heat |
| S/N | ≥100dB |
| Slew Rate | ≥20V/µS |
| System Type | 2U Professional Power Amplifier |
| THD+N | ≤0.5% 20Hz-20kHz |
| Voltage Gain (8Ω) | 37dB |
| Weight | 24.2Kg/pc, 53.4 lbs/pc |
| Frequency Response | 20Hz - 20KHz (+0, -1dB) |
| Carton Dimensions (Hwd) | 160 x 580 x 540mm, 6.3 x 22.8 x 21.3" |
