MX395W/O Düğme Mikrofon

Shure MX395W/O Düğme Mikrofon

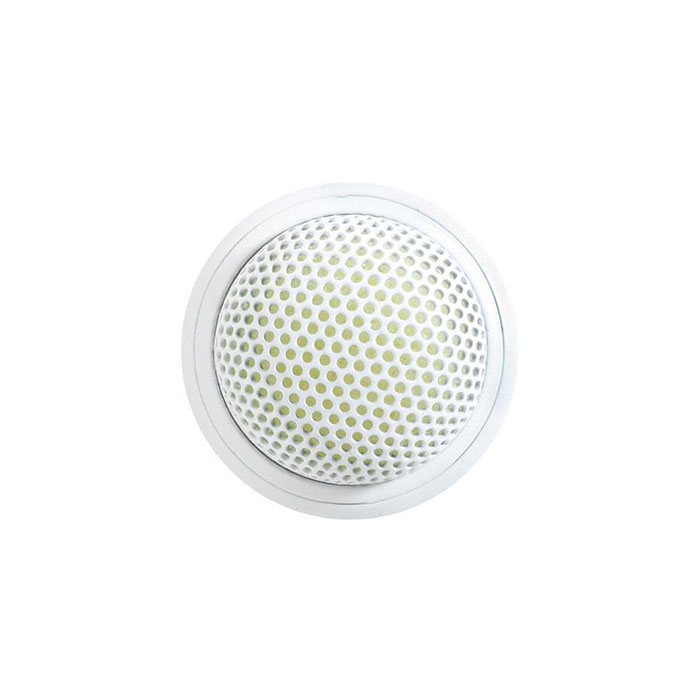

The Shure MX395W/O Microflex Boundary Microphone, Omnidirectional (White) is a low profile boundary microphone designed for concealed capturing of conversations, speech and ambient audio while mounted in a flat surface, such as a desktop, ceiling or podium. The MX395W/O measures just 1.25" (3.8 cm) in diameter, making it an ideal solution for video and broadcast operation.

The microphone features an optimized frequency response and is available in a bi-directional, cardioid or omnidirectional polar patterns. Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status. The MX395W/O is an ideal choice for speech capturing in meetings, executive boardrooms, conferences, news broadcasts and more.

Miniature Size: The MX395 measures just 1.25" (3.8 cm) in diameter, making it an ideal solution for video and broadcast operation

Omnidirectional: The omnidirectional polar pattern provides a uniform pick up at the entire perimeter of the microphone.

Bi-color LED Ring: Additional features include logic-controlled mute and a bi-colored LED ring for indicating open or mute status

Frequency Response50 to 17000 HzPolar PatternOmnidirectionalOutput ImpedanceEIA Rated at 150 Ohms (170 Ohms actual)Output ConfigurationActive balancedSensitivity-28 dBV/Pa (42 mV)Maximum SPLOmnidirectional: 114 dB (1 kHz at 1% THD, 1 kilohms load)Equivalent output Noise (A-weighted)Omnidirectional: 21 dB SPLSignal-to-Noise RatioOmnidirectional: 73 dB (referenced at 94 dB SPL at 1 kHz)Dynamic Range (1 kilohm load at 1 kHz)Omnidirectional: 93 dBCommon Mode Rejection (10 Hz - 100 kHz)45 dB minimumPreamplifier output Clipping level-8 dBV (0.4 V)Polarity3-Pin XLR: Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connectorOutput Connectors3-pin XLRPadNoLow Frequency Roll-OffNoLogic ConnectionsLED IN: Active low (=1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50VOperating Temperature-18 to 57 deg. C (0 to 135 deg. F)Storage Temperature-29 to 74 deg. C (-20 to 165 deg. F)Relative Humidity0 to 95%Power Requirements11 - 52 Vdc phantom, 2.0 mADimensions (Dia)1.25-inch (3.8 cm)Weight0.136 kg (0.30 lbs.)Mfr #MX395W/OSKUSHMX395WO
