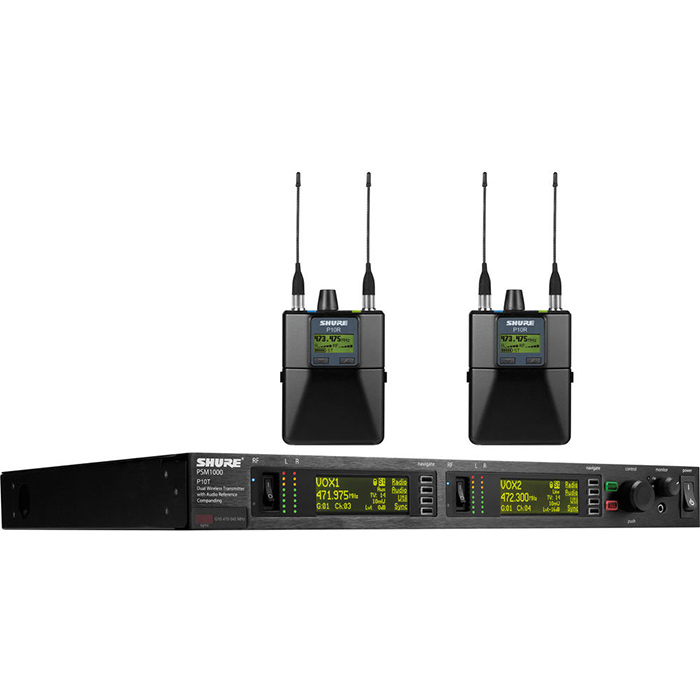

Dual-channel PSM®1000 offers premium features for touring-grade wireless monitoring applications.
Features a diversity bodypack receiver and optional stereo or mono modes
Offers networkability over Ethernet connection and bodypack rechargeability with the Shure SB900 lithium-ion battery
Provides 49 compatible frequencies per band
Delivers a 72 MHz–80 MHz tuning bandwidth (regionally dependent)
Sistem içeriği ;
P10R Diversity Bodypack Receiver (2 Kanal)
Modulation FM, MPX Stereo
Operating Range 300' (90 m)
Frequencies J8: 554-626MHz
Frequency Response 38Hz - 15kHz
Signal to Noise Ratio 90dB
RF Sensitivity 2.2µV
Filter -3dB @ 30.5MHz, From Center Frequency of Each Band
Gain Control 31dB
Image Rejection > 90dB
Adjacent Channel Crosstalk > 70dB
Blocking > 80dB
Squelch 22dB SINAD
Intermodulation Distortion > 70dB
Load Impedance 9.5 Ohms
Output Power 100mW per Output
Gain Boost +2dB, +4dB @ 10kHz Selectable
Limiter 3-9, Selectable
Connectors 1 x 3.5mm Headphone Jack
2 x Antenna Connectors
Battery Type/Life 2 x AA, Approx 4-6 Hours
1 x SB900 Li-ion Rechargeable Pack, Approx 10 Hours
Dimensions (HxWxD) 3.9 x 2.6 x 0.9" (99 x 66 x 23mm)
Weight 6.56 oz (186g) (With Batteries)
P10T Dual Channel wireless Transmitter
RF Output Power Selectable: 10, 50, 100 mW (+20 dBm)
varies by region
RF Output Impedance 50 Ω (typical)
Impedance 70.2k Ω (actual)
Nominal Input Level Switchable: +4 dBu, -10 dBV
Maximum Input Level +4 dBu: +29.2 dBu
-10 dBV: +12.2 dBu
Connector Type Input: Combination XLR and 6.35 mm (1/4") TRS
Output: 1/4" TRS (6.35mm)
Pin Assignments
XLR: 1=ground, 2=hot, 3=cold
1/4" TRS (6.35mm): Tip=hot, Ring=cold, Sleeve=ground
Polarity
XLR: Non-inverting (pin 2 positive with respect to pin 3)
1/4" (6.35mm) TRS: Tip positive with respect to ring
Electronically balanced
Phantom Power Phantom power protection: Up to 60 VDC
Power Requirements Input: 100―240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
Output: 100―240V AC, 5A max, unswitched
Dimensions 19 x 13.50 x 1.73" (483 x 343 x 44mm)
Weight 1.87 lb (850 g)
Not: Bu Set Kulaklık içermez. Ayrıca almalısınız.
