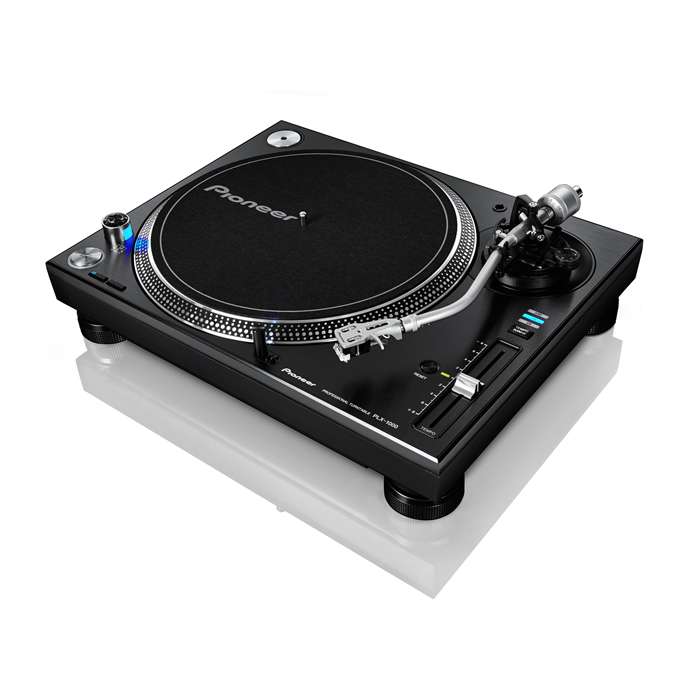

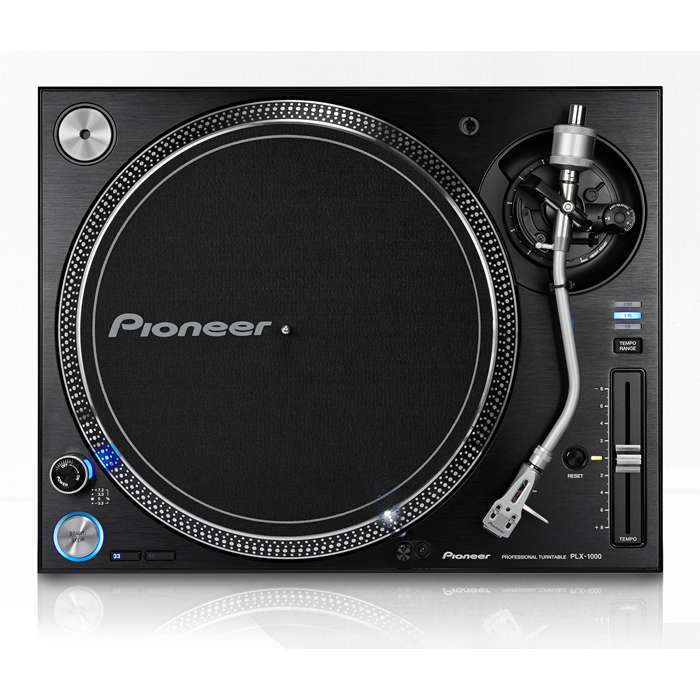

The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. This high-torque direct drive turntable is equipped with a classic layout and a rubber-lined, S-shaped tone arm that improves isolation and prevents feedback. It is solidly built for excellent vibration damping and ultra-precise, high grade audio playback.

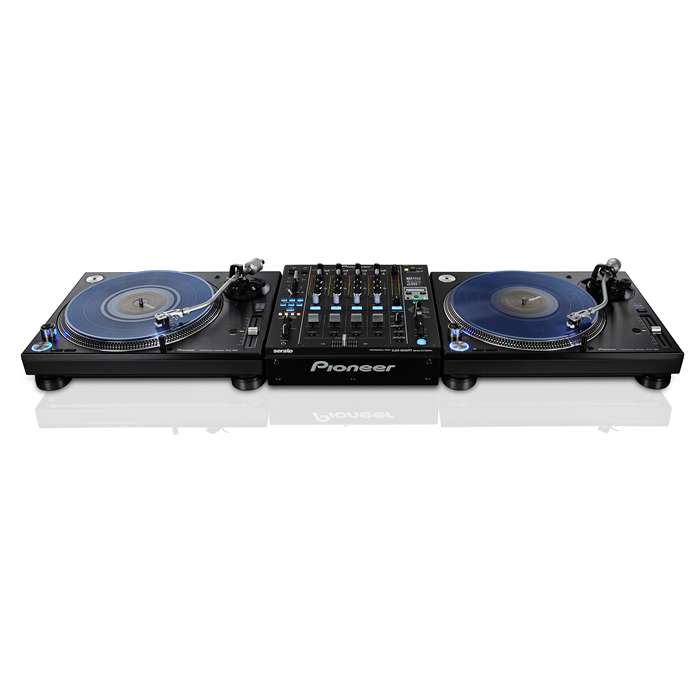

Featuring next generation improvements, the PLX-1000 is the perfect score for professional DJs and vinyl enthusiasts. Combine this turntable with your Pioneer DJM mixer and get the ideal DJ system set-up.
Power Requirements AC 220-240V / 50/60Hz
Power Consumption 9 W
Weight 13.1 kg
Dimensions 453 x 159 x 353 mm

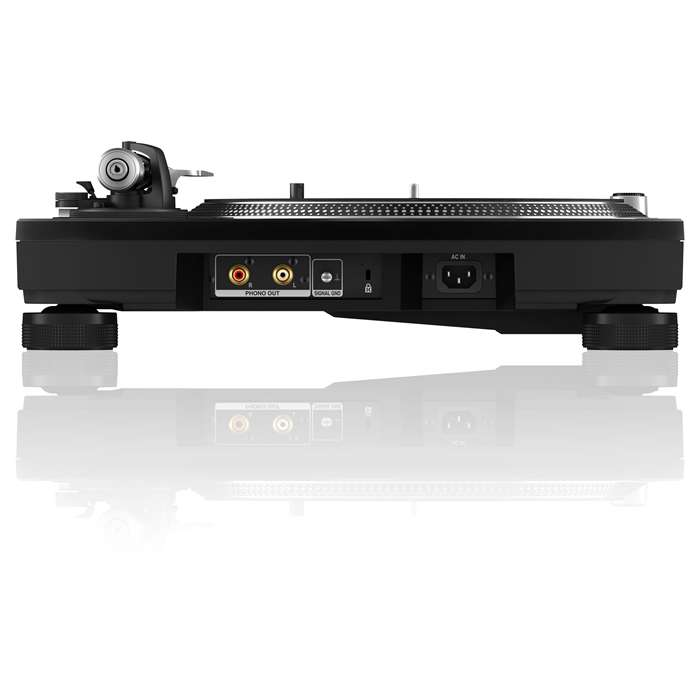

Output 1 x RCA
Accessories • Turntable sheet
• Slip mat and sheet

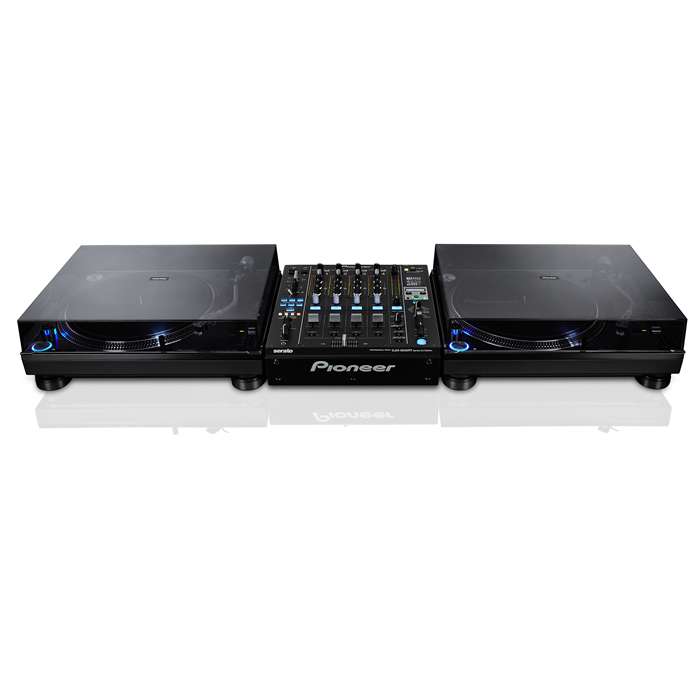

• Dust cover
• Head shell
• Balance, sub and shell weights
• Audio cable
• Ground wire
Turntable
Drive Method Quartz lock, servo-type, direct drive
Motor 3-phase, brushless DC motor
Braking System Electronic brake
Rotation Speed 33⅓-45 rpm
Rotation Adjustment Range ±8%, ±16%, ±50%
Wow and Flutter < 0.1% WRMS (JIS WTD)
S/N Ratio 70 dB
Turntable Aluminium, die-casting diameter: 332 mm
Starting Torque > 4.5 kg/cm
Start Time 0.3 seconds (at 33⅓ rpm)
Tone Arm
Arm Type • Universal type S-shape tone arm
• Gimbal-supported type bearing structure
• Static balance type
Effective Length 230 mm
Overhang 15 mm
Tracking Error Within 3°
Height Adjustment Range 6 mm
Stylus Pressure Variable Range 0-4 g (1 scale 0.1 g)
Cartridge Weight 3.5-13 g (single cartridge)
• With shell weight: 3.5-6.5 g
• With balance weight: 6.0-10 g
• With sub weight: 9.5-13 g
