Lavoce

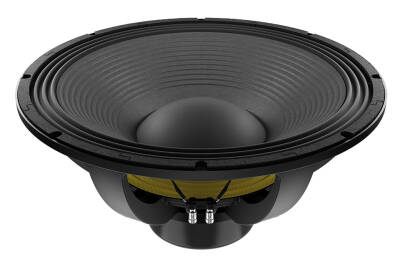

SAN215.30 21" SUBWOOFER

61.425 TL
Fiyat Alarmı

Tükendi

Gelince Haber Ver
61.425 TL
Gelince Haber Ver
FEATURES

- 5.3 INCH COPPER VOICE COIL

- 97 dB/SPL SENSITIVITY

- 4000 WATT PROGRAM POWER HANDLING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- 52,8 mm (2.1 INCH) PEAK TO PEAK

  MAXIMUM EXCURSION

- OPTIMIZED COOLING SYSTEM

- DOUBLE SILICON SPIDER

- ALUMINIUM DEMODULATING RING

- TRIPLE ROLL SURROUND

- ALTERNATIVE IMPEDANCE: 4 OHM
GENERAL SPECIFICATIONS
Nominal diameter
mm (in)
530 (21)
Nominal Impedance
Ohm
8
Minimum impedance
Ohm
6,9
Program power
W
4000
AES Power rating
W
2000
Sensitivity
dB
97
Frequency range
Hz
30 ÷ 1000
Voice coil diameter
mm (in)
134 (5.3)
Chassis material

Aluminium
Magnet material

Neodymium
Magnet dimensions OD x ID x h
mm (in)
130 x 35 x 14 (5.12 x 1.38 x 0.55)
Coil material

Copper
Former material

Glass Fiber
Cone material

Water Resistant Treated Paper + Water Proof Both Sides Treatment
Surround material

Polycotton
Xmax
mm (in)
14,9 (0.59)
Xmech
mm (in)
26,4 (1.04)
Gap height
mm (in)
18 (0.71)
Voice coil winding height
mm (in)
38,8 (1.53)
Driver displacement volume
l (ft³)
10,55 (0.372)
Recommended Enclosure
l (ft³)
299 (10.56)
Recommended Tuning
Hz
32
SMALL SIGNAL PARAMETERS
DC resistance (Re)
Ohm
5,4
Resonance frequency (Fs)
Hz
33
Moving mass (Mms)
g (oz)
464,4 (16.38)
Compliance (Cms)
mm/N
0,051
Force factor (Bxl)
N/A
38,34
Mechanical Q-factor (Qms)

5,48
Electrical Q-factor (Qes)

0,35
Total Q-factor (Qts)

0,32
Equivalent air volume (Vas)
l (ft3)
204,15 (7.21)
Voice coil inductance (Le)
mH
2,76
Diaphragm area (Sd)
cm2 (in.2)
1690 (262)
Reference efficiency (Eta 0)

1,96 %
Efficiency bandwidth product (EBP)
Hz
94

SHIPPING INFORMATION
Net weight
kg (lb)
17 (37.5)
Multipack size W x D x H
mm x mm x mm (in x in x in)
580 x 580 x 310 (22.8 x 22.8 x 12.2)
Multipack weight
kg (lb)
20,2 (44.5)
