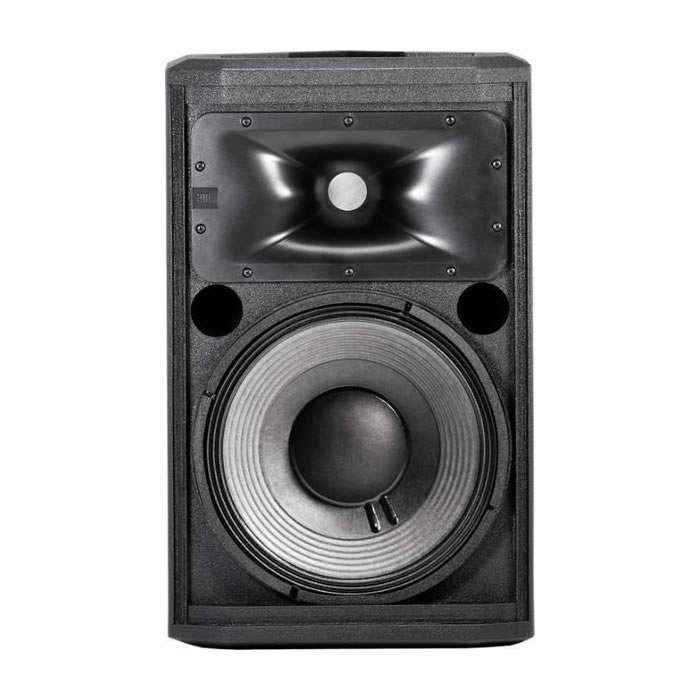

System Type: 12", two-way, bass-reflex, stage-monitor / utility
Frequency Range (-10 dB): 50 Hz – 20 kHz
Frequency Response (±3 dB): 75 Hz – 20 kHz
Coverage Pattern: 70° x 70° nominal (Monitor position)
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 2.2 kHz
Power Rating Passive: 800 W / 1600 W / 3200 W
(Continuous/ Program / Peak): Bi-amp LF: 800 W / 1600 W / 3200 W
Bi-amp HF: 75 W / 150 W / 300 W
Maximum SPL: 130 dB SPL peak
System Sensitivity (1w @ 1m): 95 dB SPL (passive mode)
LF Driver: 1 x JBL 2206H 305 mm (12 in) Vented Gap Cooled™woofer
HF Driver: 1 x JBL 2432H 75 mm (3 in) voice coil, neodymium compression driver
Nominal Impedance: Passive: 8 ohms
Bi-amp LF: 8 ohms
Bi-amp HF: 8 ohms
Active Tunings: Designed for Crown amplifiers and dbx DriveRack.
Settings available at www.jblpro.com
Enclosure: Symmetrical stage monitor, 18 mm, 13-ply
birch/poplar laminate plywood.
Suspension / Mounting: 35 mm pole socket
2 x M10 fittings for optional STX812M-YK yoke
Transport: Integrated handle / input cup
Finish: Black DuraFlex finish
Grille: Powder coated, black, 14-gauge perforated steel with
acoustical transparent charcoal foam backing.
Removable JBL badge and punched JBL logo.
Input Connectors: Neutrik® Speakon® NL-4 (x2), one on each end
Dimensions (H x W x D): 571 mm x 355 mm x 264 mm (22.5 in x 13.4 in x 10.4 in)
Net Weight: 19 kg (42 lb)
