Frequency Range (-10 dB): 41 Hz – 20 kHz
Frequency Response (±3 dB): 55 Hz – 20 kHz
Coverage Pattern: 70° x 70° nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 1.8 kHz
Power Rating(Continuous/ Program / Peak): Passive: 800 W / 1600 W / 3200 W
Bi-amp LF: 800 W / 1600 W / 3200 W
Bi-amp HF: 75 W / 150 W / 300 W
Maximum SPL: 131 dB SPL peak
System Sensitivity (1w @ 1m): 96 dB SPL (passive mode)

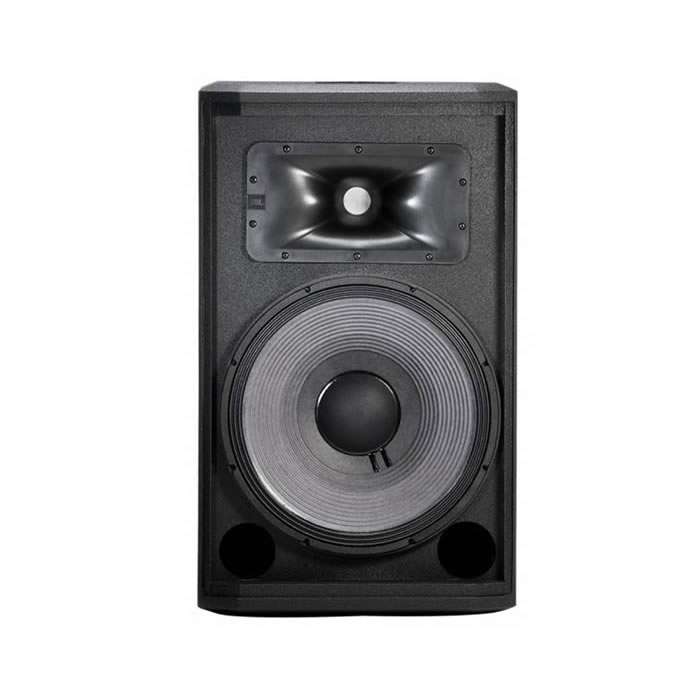

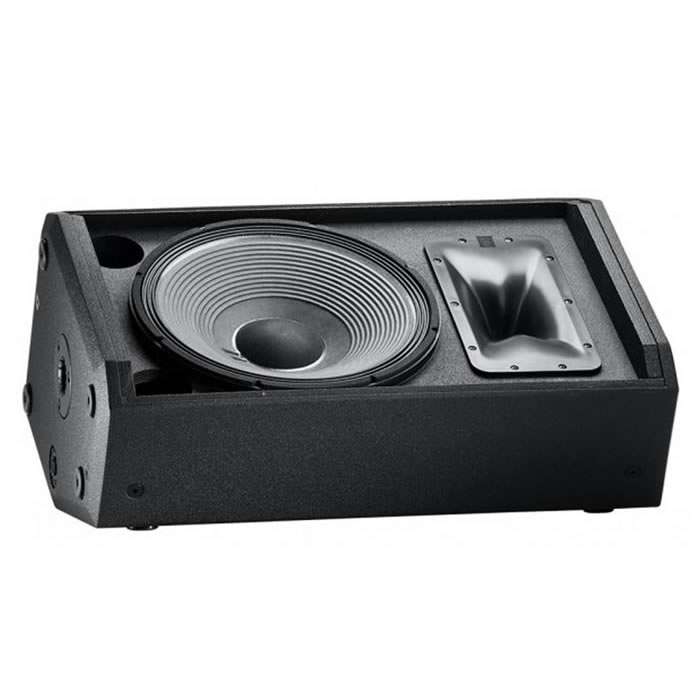

LF Driver: 1 x JBL 2226H 380 mm (15 in) Vented Gap Cooled™ woofer
HF Driver: 1 x JBL 2432H 75 mm (3 in) voice-coil, neodymium-magnet compression driver
Nominal Impedance: Passive: 8 ohms
Bi-amp LF: 8 ohms
Bi-amp HF: 8 ohms
Active Tunings: Designed for Crown and dbx DriveRack. Settings
available at www.jblpro.com
Enclosure: Asymmetrical, 18 mm, 13-ply birch/poplar laminate plywood
Suspension / Mounting: 35 mm pole socket
12 x suspension points, M10
Transport: 2 side handles
Finish: Black DuraFlex finish
Grille: Powder coated, black, 14-gauge perforated steel with
acoustical transparent charcoal foam backing.
Input Connectors: Neutrik ® Speakon® NL-4 (x2)
Dimensions (H x W x D): 721 mm x 436 mm x 329 mm (28.4 in x 17.2 in x 13.0 in)
Net Weight: 26 kg (58 lb)
