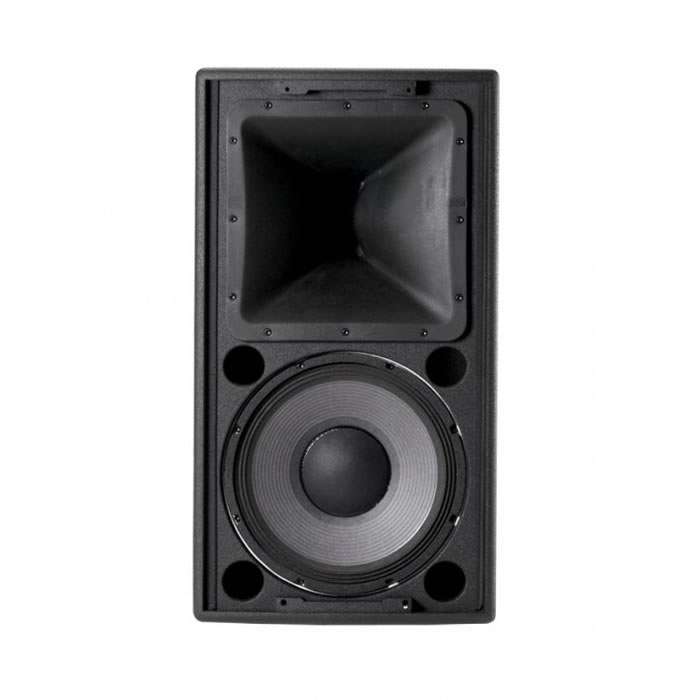

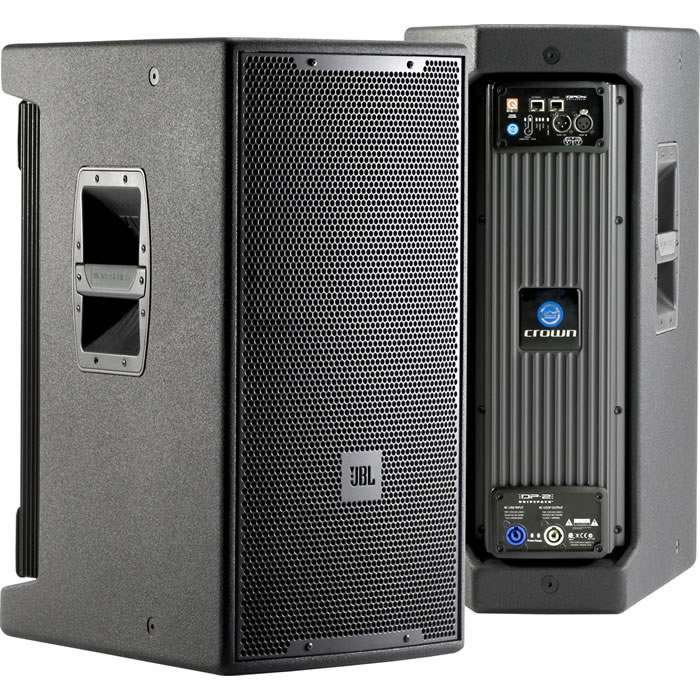

Jbl VP 7212 MDP Aktif Monitör
VP7212MDP Aktif 12"lik 2 yollu bir kabindir. Sahnede muhteşem geri dönüş sağlanması için tasarlandı. 1750W çıkış peak değeri ile saf gücü temsil etmektedir.
Teknik Özellk
Frekans Aralığı (+/-3 dB): 80 Hz - 18 kHz
Frekans Gücü (-10 dB): 55 Hz - 20 kHz
Frekans Açısı: 50° x 90°
Directivity Factor (Q): 12.6
Directivity Index (DI): 11 dB
Maximum Peak Output: 134 dB SPL 1m
Transducer Section: Low Frequency Section: JBL 2262FF, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil
neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance: 2 x 2 ohms
High Frequency: JBL2452H-SL, 100 mm (4 in) titanium damped
diaphragm, 1.5 in. exit.
Bandpass Nominal Impedance: 8 ohms
System:
DPC-2 Internal Amplification Output
(at nominal load) 1750 Watts Peak, 875 Watts Continuous
DPC-2 Output (Continuous IEC shaped
pink noise into rated load impedance): 750LF/125HF Watts
DPC-2 Output Section: LF: Dual Bridged Technology™, Class D
HF: Bridged Class D
Audio Input connector XLR with loop-through
User Controls: System EQ Selection: Full Range or Speech/Vocal
0-16 dB input Attenuator with 32 precision 0.5 dB steps
Signal Processing: DSP based, resident in Input Module
